J.I. Case 480LL
|
|
| Production | |
| Manufacturer | J.I. Case |
| Industrial tractor | |
| J.I. Case 480LL Engine | |
| J.I. Case 3.1L 4-cyl diesel | |
 Engine details ... |
| J.I. Case 480LL Transmission | |
| 4-speed power shuttle | |
 Transmission details ... |
| J.I. Case 480LL Power | |
| Engine (gross) | 52 hp 38.8 kW |
| Engine (net) | 47 hp 35.0 kW |
| Mechanical | |
| Two-wheel drive | |
| Power steering | |
| Hydraulic brakes | |
| Four-post ROPS/FOPS. |

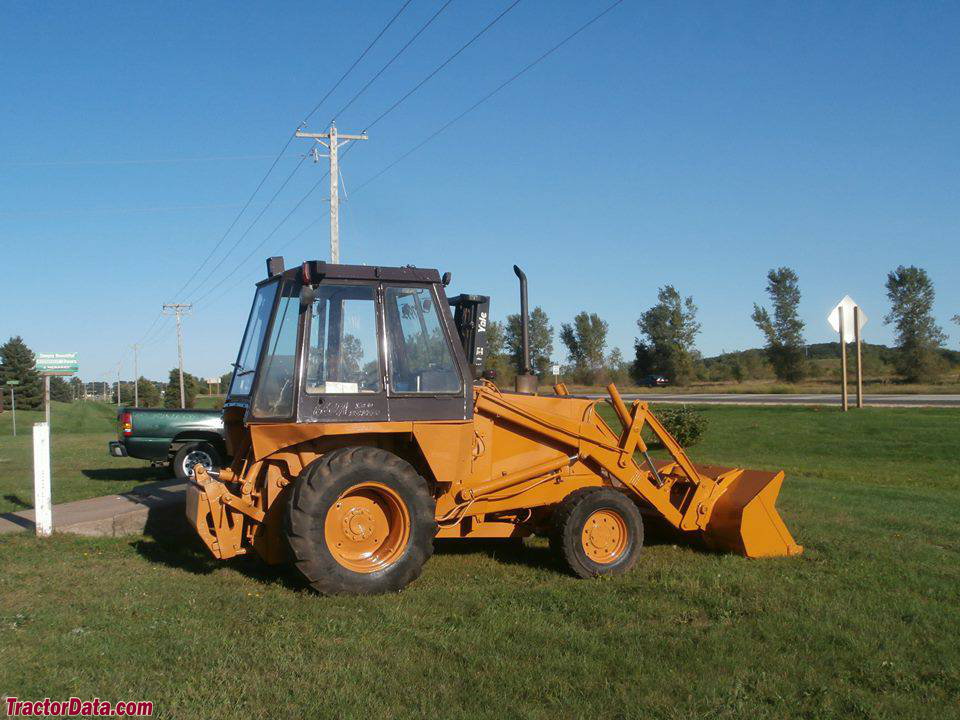

| Photos | |
 | |
 J.I. Case 480LL photos... | |
| Capacity | |
| Fuel | 23.5 gal 88.9 L |
| Hydraulic system | 10.8 gal 40.9 L |
| Hydraulics | |
| Type | open center |
| Capacity | 10.8 gal 40.9 L |
| Pressure | 2200 psi 151.7 bar |
| Pump flow | 23.9 gpm 90.5 lpm |
| Steering flow | 6.4 gpm 24.2 lpm |
| Tractor hitch | |
| Rear Type | I |
| Power Take-off (PTO) | |
| Rear PTO Type | 540 (1.375) |
| Dimensions & Tires | |
| Wheelbase | 80 inches 203 cm |
| Weight | 6670 lbs 3025 kg |
| Front tire | 7.50x16 |
| Rear tire | 14.9x24 |
 Full dimensions and tires ... | |
| J.I. Case 480LL attachments | |
| front-end loader | |
 Attachment details ... |
| Electrical | |
| Ground | negative |
| Charging system | alternator |
| Charging amps | 39 |
| Battery CCA | 575 |
| Battery volts | 12 |
| References | |
 | |
| 480 Loader/Landscaper published in 1980, by J.I. Case | |
| The Tractor Specialist Buyers Guide published in 1984, by J.I. Case | |
| Tractor & Loaders Buyers Guide published in 1985, by J.I. Case |
