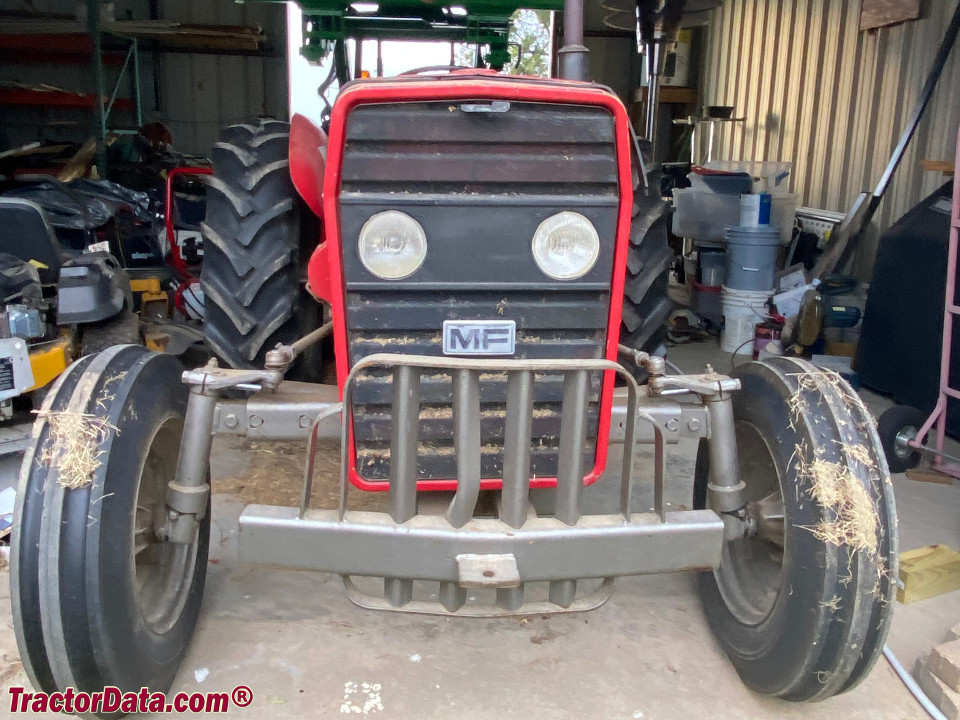

Massey Ferguson 20D
|
|
| Production | |
| Manufacturer | Massey Ferguson |
| Industrial tractor | |
| Variants | |
| 20D Turf | turf tractor |
| Massey Ferguson 20D Engine | |
| Perkins 2.5L 3-cyl diesel | |
| Fuel tank | 12.7 gal 48.1 L |
 Engine details ... | |
| Massey Ferguson 20D Transmissions | |
| 8-speed gear | |
| 6-speed manual shuttle | |
| 4-speed | |
 Transmission details ... |
| Massey Ferguson 20D Power | |
| Engine (net) | 45 hp 33.6 kW |
| PTO (claimed) | 37 hp (540rpm) 27.6 kW |
| 41.2 hp (max) 30.7 kW | |
| Mechanical | |
| Two-wheel drive | |
| Differential lock | mechanical rear |
| Power steering | |
| Mechanical drum brakes | |
| Open operator station. Two-post ROPS optional. | |
| Hydraulics | |
| Type | open center |
| Pressure | 2550 psi 175.8 bar |
| Pump flow | 4.4 gpm (tractor) 16.7 lpm |
| 19 gpm (loader) 71.9 lpm | |
| Tractor hitch | |
| Rear Type | I |
| Control | position and draft control |
| Rear lift (at ends) | 3232 lbs 1466 kg |
| Power Take-off (PTO) | |
| Rear PTO | live |
| Rear PTO Type | 540 (1.375) |
| Engine RPM | 540@1683 |
| Dimensions & Tires | |
| Wheelbase | 74.2 inches 188 cm |
| Weight | 4456 lbs 2021 kg |
| Front tire | 7.5/8-16 |
| Rear tire | 14.9-24 |
 Full dimensions and tires ... | |
| Massey Ferguson 20D attachments | |
| front-end loader | |
 Attachment details ... |
| 20D Serial Numbers | |
| 1983 | 810003 |
| 1984 | 810320 |
| 1985 | 810726 |
| 1986 | 810985 |
| 1987 | 1996V03158 |
| 1988 | 2996N1001 |
FAQ: How to read a serial number table. | |
| Electrical | |
| Ground | negative |
| Charging system | alternator |
| Charging amps | 35 |
| Battery CCA | 340 |
| Battery volts | 12 |

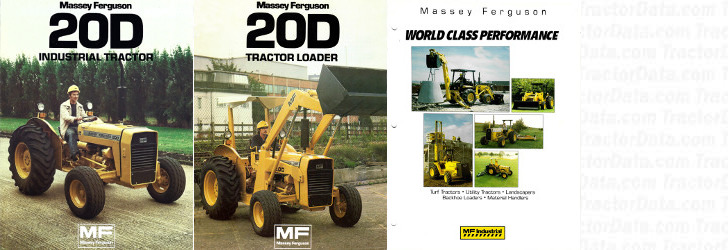

| References | |
 | |
| 20D Industrial Tractor published by Massey Ferguson | |
| 20D Tractor Loader published in 1984, by Massey Ferguson | |
| Turf Tractors - Utility Tractors - Landscapers - Backhoe Loaders - Material Handlers published in 1987, by Massey Ferguson |
