Massey Ferguson 20

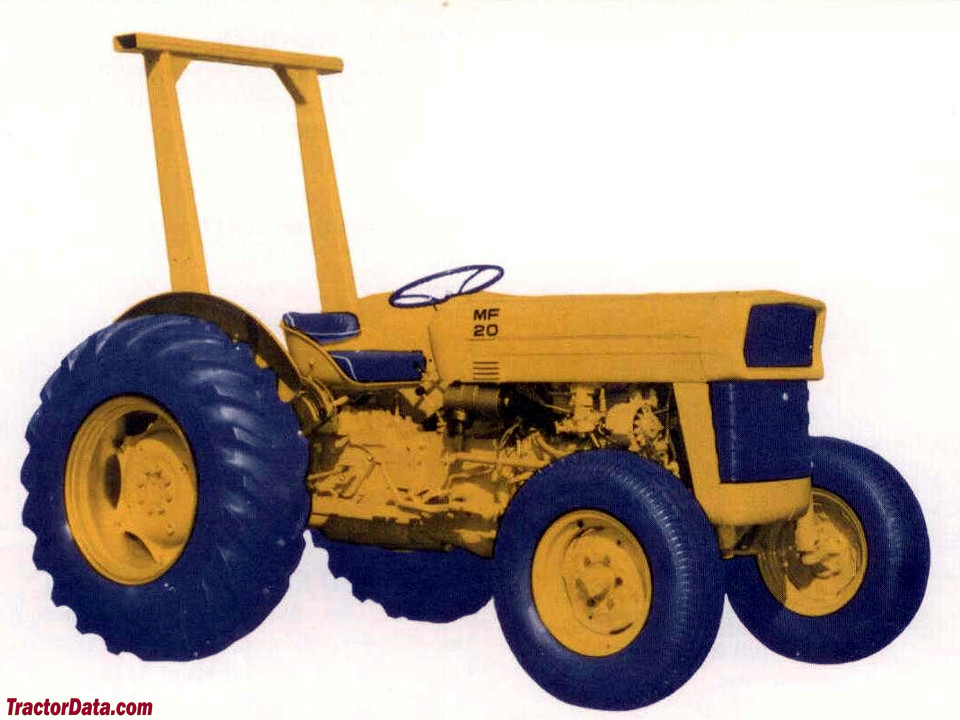

Massey Ferguson 20 industrial tractor photo
1966 - 1976
Industrial tractor
Series map:
20
42.0hp
Production
ManufacturerMassey Ferguson
Industrial tractor
Variants
20industrial
20Tturf tractor
Massey Ferguson 20 Engines
Perkins 2.5L 3-cyl diesel
Perkins 2.5L 3-cyl gasoline
Engine details ...
Massey Ferguson 20 Power
Engine42 hp
31.3 kW
Drawbar (claimed)33 hp
24.6 kW
PTO (claimed)38 hp
28.3 kW
Mechanical
Two-wheel drive
Differential lockfoot-operated standard
Steeringpower assist
Internal expanding shoe brakes
Open operator station. Optional two-post ROPS or four-post ROPS with canopy. Optional cab.
Capacity
Fuel10.7 gal
40.5 L
Hydraulic system8 gal (tractor)
30.3 L
 24 gal (loader)
90.8 L
Steering1.6 qts
1.5 L
Hydraulics
Typeopen center (loader)
Capacity8 gal (tractor)
30.3 L
 24 gal (loader)
90.8 L
Pressure2125 psi (loader)
146.5 bar
Total flow17 gpm (loader)
64.3 lpm
Steering cap.1.6 qts
1.5 L
Tractor hitch
Rear Typeoptional
Power Take-off (PTO)
Rear PTOlive
Rear PTO Type540
Dimensions & Tires
Wheelbase75 inches
190 cm
Weight3120 to 4255 pounds
Front tire6.00x16
Rear tire14.9x24
Full dimensions and tires ...
Electrical
Charging systemalternator
Battery volts12
References
20 references literature
Buyer's Guide published in 1972, by Massey Ferguson
Buyer's Guide published in 1973, by Massey Ferguson
