Ford 4500 Transmission


Ford 4500 tractor photo
1965 - 1975
Industrial tractor
Transmission options
6-speed mechanical shuttle
10-speed full power shift
4-speed power shuttle
8-speed gear
Transmission
TransmissionManual Reversing
Typemechanical shuttle
Gears6 forward and 4 reverse
Oil capacity13.8 qts
13.1 L
Three speeds forward, two reverse, in two ranges.
Speeds

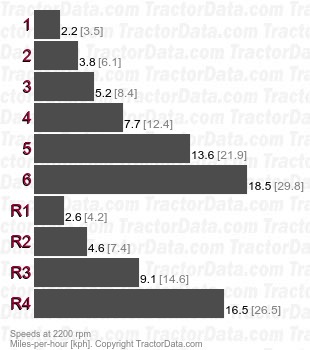

4500 Manual Reversing mechanical shuttle speeds

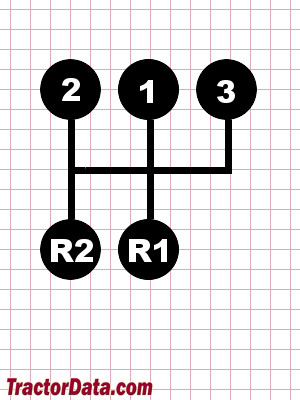

Shift Pattern
Ford 4500 transmission controls
Transmission
TransmissionSelect-O-Speed
Typefull power shift
Gears10 forward and 2 reverse
Oil capacity13.2 qts
12.5 L
Speeds

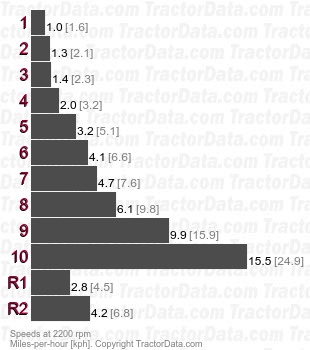

4500 Select-O-Speed full power shift speeds
Transmission
Typepower shuttle
Gears4 forward and reverse
Oil capacity19 qts
18.0 L
Four-speed gear box with left-hand shuttle. Torque converter.
Speeds
4500  power shuttle speeds

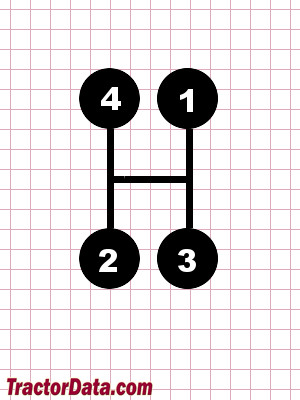

Shift Pattern
Ford 4500 transmission controls
Transmission
TransmissionDual Range
Typegear
Gears8 forward and 2 reverse
Oil capacity13.2 qts
12.5 L
Four gears, plus reverse, in two ranges.
Speeds
4500 Dual Range gear speeds

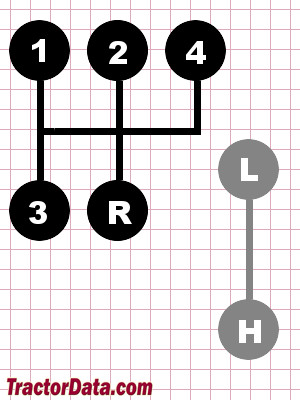

Shift Pattern
Ford 4500 transmission controls
