Ford 3500 Transmission
|
|

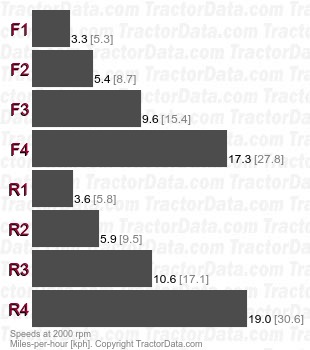

| Series: | 3500 |
| 3550 ↓ |
| Transmissions overview | |
| 4-speed gear | |
| 6-speed mechanical shuttle | |
| 4-speed power shuttle | |
| 10-speed full power shift | |
| 12-speed gear | |
| 8-speed gear |
| Transmission | |
| Type | gear |
| Gears | 4 forward and 1 reverse |
| Clutch | dry disc |
| Oil capacity | 6 qts 5.7 L |

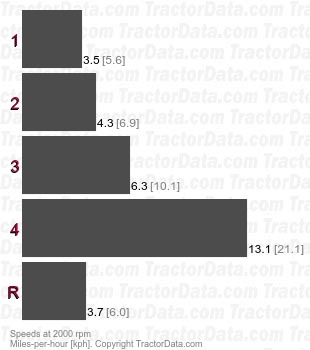

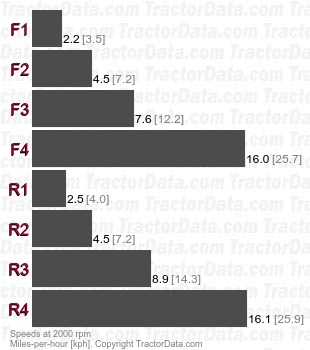

| Speeds | |
|

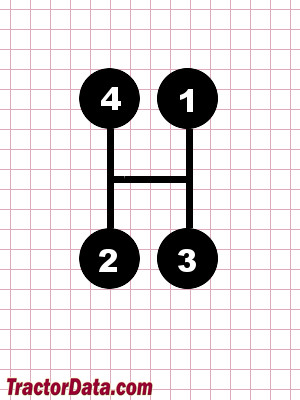

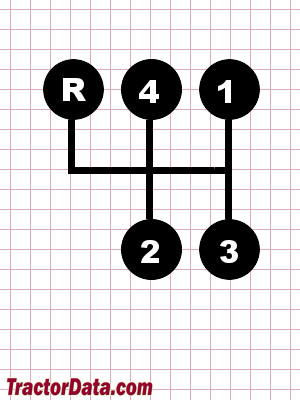

| Shift Pattern | |
 |
| Transmission | |
| Transmission | Manual Reversing |
| Type | mechanical shuttle |
| Gears | 6 forward and 4 reverse |
| Oil capacity | 13.2 qts 12.5 L |
| Speeds | |
|

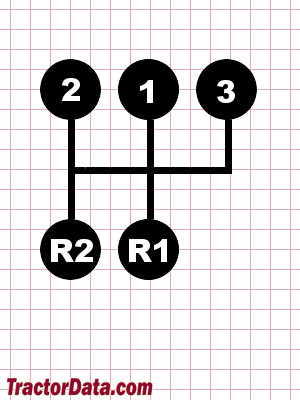

| Shift Pattern | |
 |
| Transmission | |
| Type | power shuttle |
| Gears | 4 forward and reverse |
| Oil capacity | 17 qts 16.1 L |
| Four-speed gear box with left-hand shuttle. Torque converter. | |
| Speeds | |
|
| Shift Pattern | |
 |
| Transmission | |
| Transmission | Select-O-Speed |
| Type | full power shift |
| Gears | 10 forward and 2 reverse |
| Oil capacity | 11 qts 10.4 L |

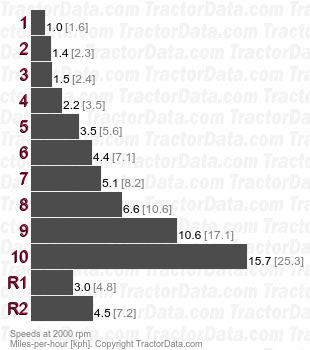

| Speeds | |
|
| Transmission | |
| Transmission | Over-Under |
| Type | gear |
| Gears | 12 forward and 3 reverse |
| Oil capacity | 7 qts 6.6 L |
| The over-under auxiliary gearbox provides two additional speed ranges to the basic four-speed transmission. | |

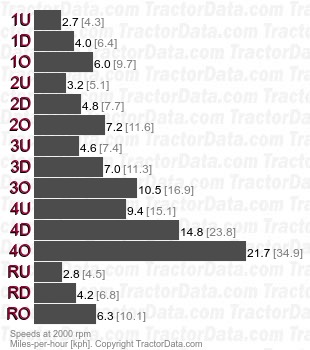

| Speeds | |
|

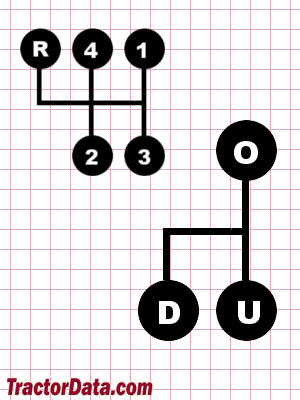

| Shift Pattern | |
 |
| Transmission | |
| Transmission | Dual Range |
| Type | gear |
| Gears | 8 forward and 2 reverse |
| Oil capacity | 13.2 qts 12.5 L |
| Four gears, plus reverse, in two ranges. | |

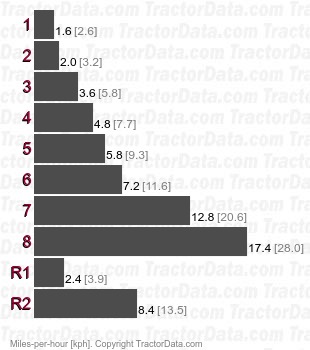

| Speeds | |
| With 28-inch rear tires. | |
|

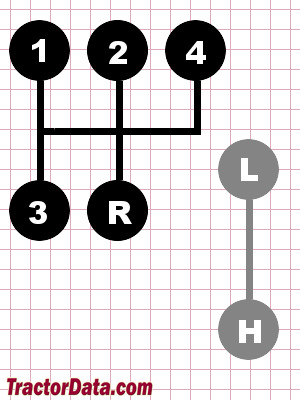

| Shift Pattern | |
 |
