Ford 3500 Engine


Ford 3500 tractor photo
1965 - 1972
Industrial tractor
Series map:
3500
46.0hp
Engine options
Ford 2.9L 3-cyl diesel
Ford 2.6L 3-cyl gasoline
Engine Detail
Ford
diesel
3-cylinder
liquid-cooled inline
Displacement175 ci
2.9 L
Bore/Stroke4.2x4.2 inches
107 x 107 mm
Power (net)44.1 hp
32.9 kW
Power (gross)46 hp
34.3 kW
Fuel systemdirect injection
Air cleanerdry
Compression16.5:1
Rated RPM2000
Torque125.7 lb-ft
170.4 Nm
Torque RPM1150
Firing order1-2-3
Starter volts12
Coolant capacity13.8 qts
13.1 L
Engine Oil

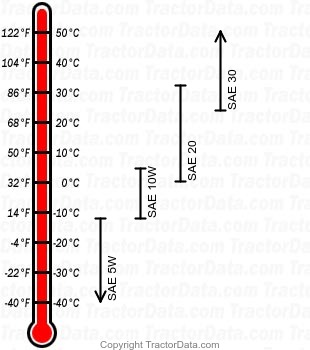

3500 diesel engine oil chart
Oil capacity8 qts
7.6 L
Engine Detail
Ford
gasoline
3-cylinder
liquid-cooled inline
Displacement158 ci
2.6 L
Bore/Stroke4.2x3.8 inches
107 x 97 mm
Power (net)46.7 hp
34.8 kW
Power (gross)48.7 hp
36.3 kW
Air cleanerdry
Compression8:1
Rated RPM2100
Torque123 lb-ft
166.8 Nm
Torque RPM1350
Firing order1-2-3
Starter volts12
Coolant capacity13.8 qts
13.1 L
Engine Oil

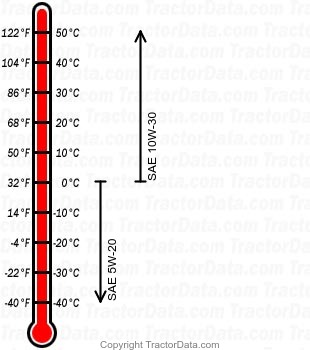

3500 gasoline engine oil chart
Oil capacity8 qts
7.6 L
