Ford 3400 Engine


Ford 3400 tractor photo
1965 - 1975
Industrial tractor
Engine options
Ford 2.9L 3-cyl diesel
Ford 2.6L 3-cyl gasoline
Engine Detail
Ford
diesel
3-cylinder
liquid-cooled inline
Displacement175 ci
2.9 L
Bore/Stroke4.20x4.20 inches
107 x 107 mm
Power (net)44.1 hp
32.9 kW
Fuel systemdirect injection
Air cleanerdry
Compression16.5:1
Rated RPM2000
Torque125 lb-ft
169.5 Nm
Torque RPM1150
Firing order1-2-3
Starter volts12
Coolant capacity13.8 qts
13.1 L
Engine Oil

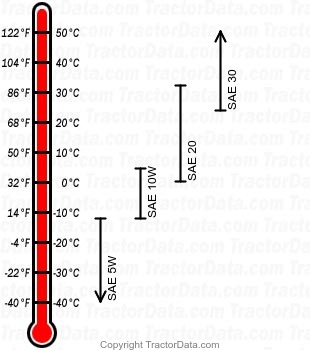

3400 diesel engine oil chart
Oil capacity8 qts
7.6 L
Ford 3400 Engine
Ford 3400 engine image
Engine Detail
Ford
gasoline
3-cylinder
liquid-cooled inline
Displacement158 ci
2.6 L
Bore/Stroke4.20x3.80 inches
107 x 97 mm
Power (net)46.7 hp
34.8 kW
Fuel systemcarburetor
Air cleanerdry
Compression8:1
Rated RPM2100
Torque123 lb-ft
166.8 Nm
Torque RPM1350
Firing order1-2-3
Starter volts12
Coolant capacity13.8 qts
13.1 L
Engine Oil

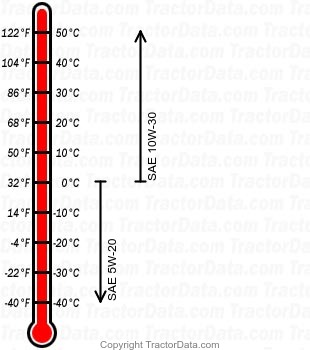

3400 gasoline engine oil chart
Oil capacity8 qts
7.6 L
