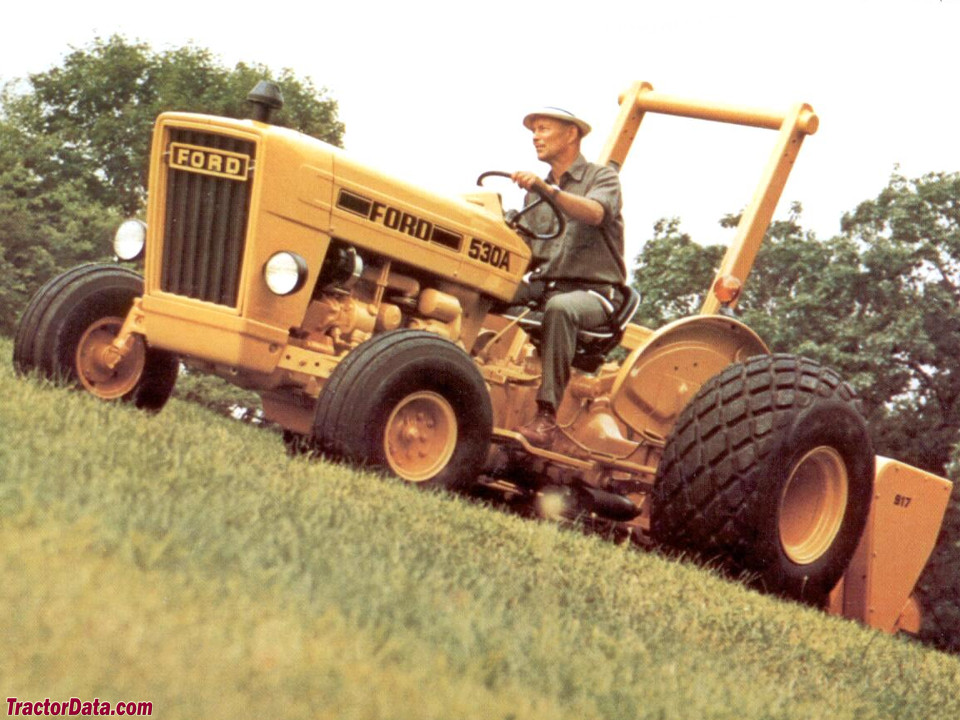

Ford 530A LCG
|
|
| Production | |
| Manufacturer | Ford |
| Industrial tractor | |
| Ford 530A LCG Engines | |
| Ford 3.3L 3-cyl diesel | |
| Ford 3.3L 3-cyl gasoline | |
 Engine details ... |
| Ford 530A LCG Transmissions | |
| 8-speed | |
| 8-speed synchromesh | |
 Transmission details ... |
| Ford 530A LCG Power | |
| Engine (gross) | 62 hp 46.2 kW |
| Engine | 59 hp 44.0 kW |
| PTO (claimed) | 52 hp 38.8 kW |
| Mechanical | |
| Two-wheel drive | |
| Differential lock | foot-engaged |
| Steering | power assist |
| Differential mechanical expanding shoe brakes | |
| Two-post ROPS. | |
| Photos | |
 | |
 Ford 530A LCG photos... | |
| Capacity | |
| Fuel | 13 gal 49.2 L |
| Hydraulic system | 6.2 gal 23.5 L |
| Steering | 1.9 qts 1.8 L |
| Rear axle | 24.6 qts 23.3 L |
| Hydraulics | |
| Type | open center |
| Capacity | 6.2 gal 23.5 L |
| Pressure | 2500 psi 172.4 bar |
| Pump flow | 5.1 gpm 19.3 lpm |
| 8.1 gpm (optional) 30.7 lpm | |
| Steering flow | 5.9 gpm 22.3 lpm |
| Steering cap. | 1.9 qts 1.8 L |
| Tractor hitch | |
| Rear Type | I |
| Rear lift (at 24"/610mm) | 1,975 lbs 895 kg |
| Power Take-off (PTO) | |
| Rear PTO | transmission |
| live (optional) | |
| Rear PTO Type | 540 |
| Dimensions & Tires | |
| Wheelbase | 75.8 inches 192 cm |
| Weight | 3,710 lbs 1682 kg |
| Front tire | 6.00-16 |
| Rear tire | 8.30-24 |
 Full dimensions and tires ... | |
| Electrical | |
| Charging system | alternator |
| Charging amps | 32 |
| Battery CCA | 395 (gas) |
| 750 (diesel) | |
| Battery volts | 12 |
| Battery AH | 128 |
| References | |
 | |
| 1982 Industrial Buyer's Guide published by Ford |
