Ford 445C


Ford 445C industrial tractor photo
1988 - 1992
C Series
Industrial tractor
Series map:
345C
445C
545C
52.0hp
56.0hp
67.0hp
Production
ManufacturerFord
Industrial tractor
Ford 445C Engine
Ford 3.1L 3-cyl diesel
Engine details ...
Ford 445C Transmissions
6-speed manual reversing
4-speed torque converter
8-speed torque converter
Transmission details ...
Ford 445C Power
Engine (gross)56 hp
41.8 kW
Engine (net)52 hp
38.8 kW
PTO (claimed)46.7 hp
34.8 kW
Mechanical
Two-wheel drive
Power steering
Wet disc brakes
Two-post ROPS with available canopy. Four-post ROPS/FOPS optional.
Capacity
Fuel16 gal
60.6 L
Hydraulic system8.7 gal (loader)
32.9 L
Steering4 qts
3.8 L
Hydraulics
Typeopen center
Capacity8.7 gal (loader)
32.9 L
Pressure2450 psi
168.9 bar
Pump flow5.6 gpm (hitch)
21.2 lpm
 8.5 gpm (hitch optional)
32.2 lpm
 26 gpm (loader pump)
98.4 lpm
Steering flow5.9 gpm
22.3 lpm
Steering cap.4 qts
3.8 L
Tractor hitch
Rear TypeI
Controlposition control and top-link draft sensing
Rear lift3080 lbs
1397 kg
Power Take-off (PTO)
Rear PTOindependent
Rear RPM540 (1.375)
Engine RPM540@1800
Dimensions & Tires
Wheelbase81 inches
205 cm
Weight8610 to 8830 pounds
Front tire7.50-16
Rear tire16.9-24
Full dimensions and tires ...
Electrical
Groundnegative
Charging systemalternator
Charging amps55
Battery CCA750
Battery volts12
Battery AH128
References

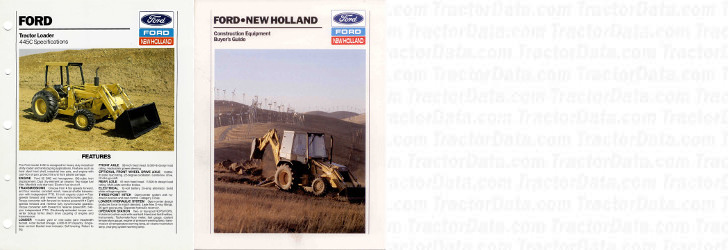

445C references literature
Tractor Loader 445C Specifications published in 1989, by Ford
Construction Equipment Buyer's Guide published in 1989, by Ford
