Ford 1881 Engine
|
|
| Engine Detail | |
| Ford | |
| gasoline | |
| 4-cylinder 8-valve | |
| liquid-cooled | |
| Displacement | 172 ci 2.8 L |
| Bore/Stroke | 3.90x3.60 inches 99 x 91 mm |
| Compression | 7.5:1 |
| Rated RPM | 2525 |
| Firing order | 1-2-4-3 |
| Starter volts | 6 |
| Coolant capacity | 15 qts 14.2 L |
| Sparkplug | 14MM |
| Sparkplug gap | 0.027 inches 0.686 mm |
| Point gap | 0.025 inches 0.635 mm |
| Intake valve clearance | 0.015 inches*Hot 0.381 mm |
| Exhaust valve clearance | 0.015 inches*Hot 0.381 mm |

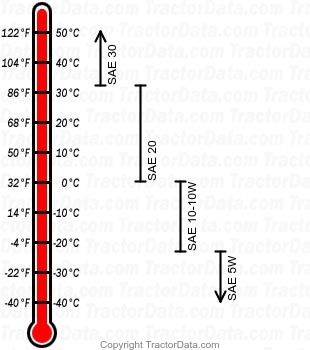

| Engine Oil | |
| |
| Oil capacity | 5 qts 4.7 L |
