John Deere 301

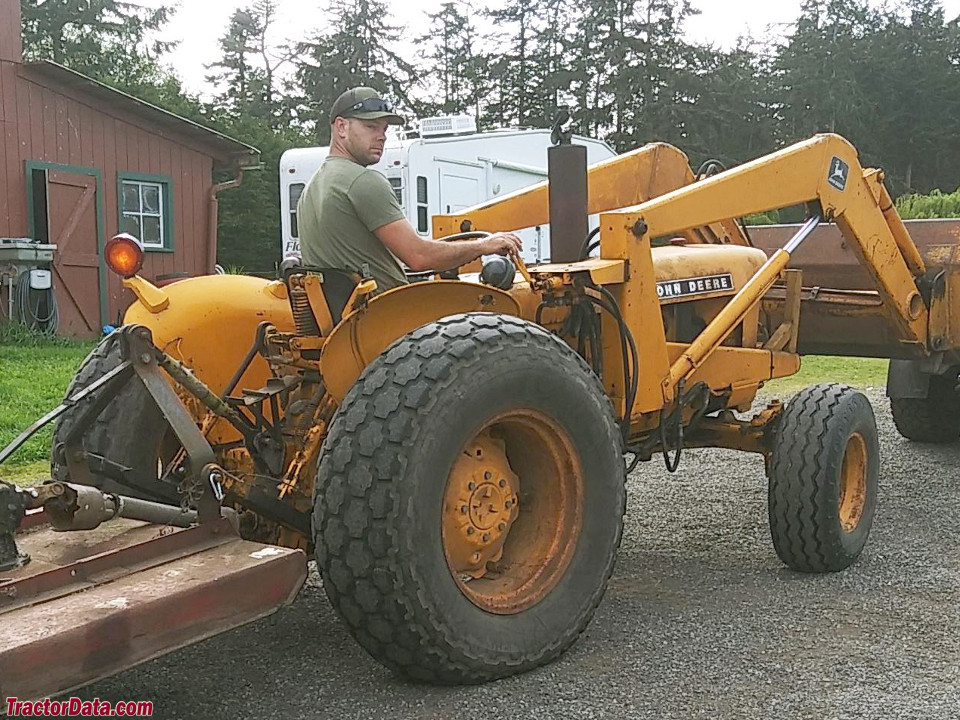

John Deere 301 industrial tractor photo
1971 - 1973
Industrial tractor
Production
ManufacturerJohn Deere
TypeIndustrial tractor
John Deere 301 Engines
John Deere 2.5L 3-cyl diesel
John Deere 2.2L 3-cyl gasoline
Engine details ...
John Deere 301 Transmissions
8-speed constant mesh
8-speed power shuttle
Transmission details ...
John Deere 301 Power
Engine (gross)46 hp
34.3 kW
Engine (net)43 hp
32.1 kW
Mechanical
Chassis4x2 2WD
Final drivesinboard planetary
Steeringmanual
Steeringpower OptOptional
Brakeshydraulic wet disc
CabTwo-post ROPS.
Capacity
Fuel16.5 gal
62.5 L
Hydraulic system10 gal
37.9 L
Hydraulics
Typeclosed center
Capacity10 gal
37.9 L
Pump flow8.8 gpm
33.3 lpm
 13 gpm (loader)
49.2 lpm
Tractor hitch
Rear TypeII OptOptional
Power Take-off (PTO)
Rear PTOtransmission OptOptional
 live OptOptional
 independent OptOptional
Rear RPM540
 540/1000
Mid PTOoptional
Mid RPM1000
Dimensions & Tires
Wheelbase74.4 inches
188 cm
Weight3740 to 3860 pounds
Full dimensions and tires ...
Electrical
Charging systemalternator
References
301 reference literature
Utility Purchasing Guide published in 1972, by John Deere
Utility Purchasing Guide published in 1973, by John Deere
