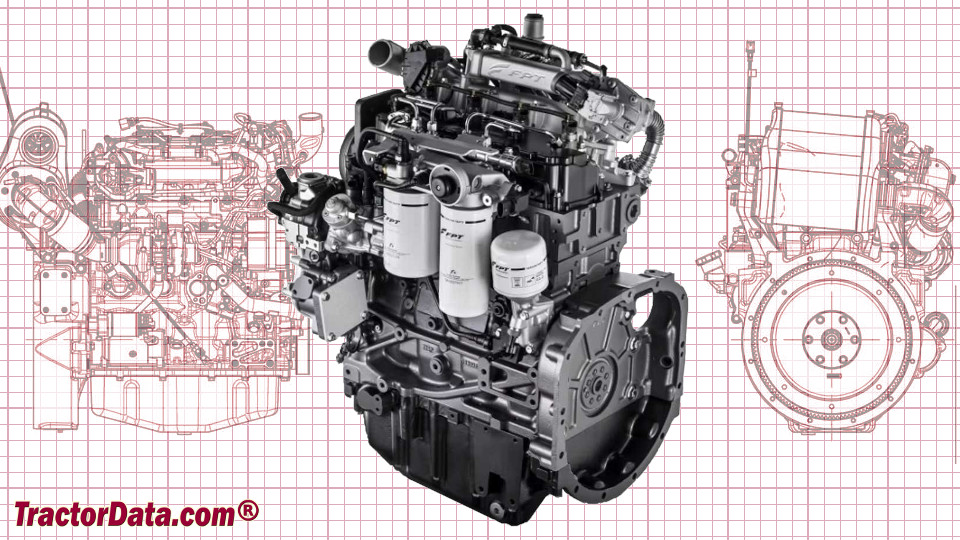

CaseIH Farmall 90C Engine
|
|
| Engine Detail | |
| FPT F36 | |
| diesel | |
| 4-cylinder 16-valve | |
| liquid-cooled inline | |
| Displacement | 220 ci 3.6 L |
| Bore/Stroke | 4.02x4.33 inches 102 x 110 mm |
| Emissions | Stage V |
| Maximum Power (gross) | 89 hp 66.4 kW |
| Fuel system | electronic high-pressure common rail |
| Rated RPM | 2300 |
| Torque | 280 lb-ft 379.7 Nm |
| Torque RPM | 1300 |
| Starter | electric |
| Starter volts | 12 |
