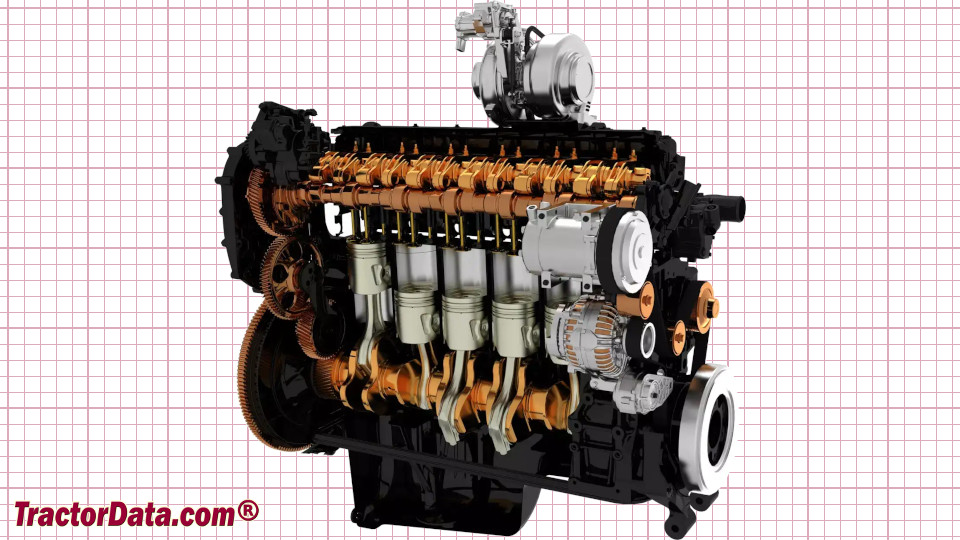

CaseIH Magnum 405 Engine
|
|
| Engine Detail | |
| FPT | |
| Variable-geometry turbocharged diesel | |
| 6-cylinder 24-valve | |
| liquid-cooled inline | |
| Displacement | 531 ci 8.7 L |
| Bore/Stroke | 4.606x5.315 inches 117 x 135 mm |
| Emissions | Tier IV |
| Emission control | selective catalytic reduction (SCR) |
| Rated Power (gross) | 405 hp 302.0 kW |
| Maximum Power (gross) | 435 hp 324.4 kW |
| Boost Power | 435 hp 324.4 kW |
| Pre-heating | intake heater |
| block heater OptOptional | |
| Rated RPM | 2000 |
| Starter | electric |
| Starter volts | 12 |
| CaseIH Magnum 405 Engine | |
 |
