| | 1996 - 1999 |
| Utility tractor |
|
Series map:
5600
5700
55.9kw
63.4kw
| Transmission |
| Transmission | John Deere Top-Shaft Synchronized (TSS)
|
| Type | partially synchronized
|
| Gears | 9 forward and 3 reverse
|
| Oil capacity | 42.3 qts
40.0 L
|
| Three gears (1-3) in three ranges (A-C) plus reverse (R). Gear shifts are synchronized with the clutch. Tractor must be stopped, and clutch used, to shift range. |

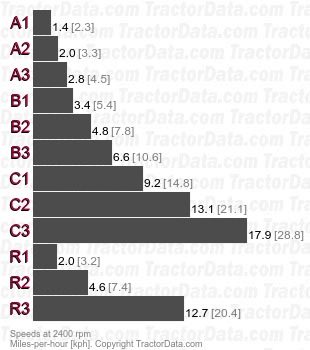

| Speeds |
| With 18.4-30 rear tires. |
|
