Massey Ferguson 5709
| | 2017 - 2021 |
| 5700 Series | | Utility tractor |
|
Series map:
5708
5709
5710
85.0hp
95.0hp
95.0hp
| Production |
| Manufacturer | Massey Ferguson (a part of AGCO)
|
| Utility tractor |
| Massey Ferguson 5709 Power |
| Engine | 95 hp
70.8 kW
|
| Mechanical |
| Four-wheel drive |
| Power steering |
| Hydraulic wet disc brakes |
| Two-post folding ROPS. Cab optional with available air-conditioning. |
| Photos |
| No photos of the Massey Ferguson 5709 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer. |
| Hydraulics |
| Type | open center
|
| Pressure | 2901 psi
200.0 bar
|
| Valves | 2 or 3
|
| Pump flow | 15.3 gpm
57.9 lpm
|
| | 26.4 gpmOptOptional
99.9 lpm
|
| Steering flow | 8.5 gpm
32.2 lpm
|
| Tractor hitch |
| Rear Type | II
|
| Rear lift | 9480 lbs
4300 kg
|
| Power Take-off (PTO) |
| Rear PTO | independent
|
| Clutch | 540:2000
|
| | 540E:1550
|
| | 1000:2000
|
| Rear PTO Type | 540/1000 (1.375)
|
| Electrical |
| Ground | negative
|
| Charging system | alternator
|
| Battery volts | 12
|
| References |
 |

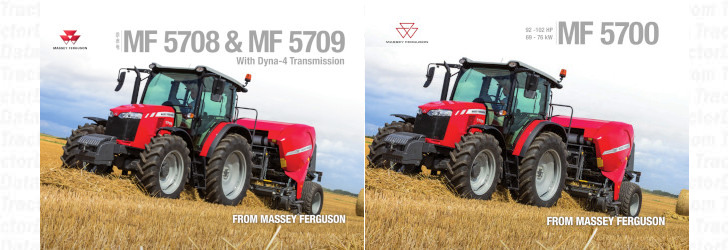

| MF 5708 & MF 5709 published in 2017, by Massey Ferguson |
| MF 5700 published in 2021, by Massey Ferguson |
| Page information |
 |
| Copyright 2025 TractorData.com® |
| Email me: Peter@TractorData.com |
| TractorData is a family-owned small business located in Minnesota. I have been researching tractor history and providing specifications for free since 1999. |
| Peter Easterlund - owner/author |
| This machine's data modified on November 29, 2025 |
©2000-2025 - TractorData.com®. Notice: Every attempt is made to ensure the data listed
is accurate. However, differences between sources, incomplete listings,
errors, and data entry mistakes do occur.
Consult official
literature from the manufacturer before attempting any service or repair.
Engine details ...
Transmission details ...
Full dimensions and tires ...
