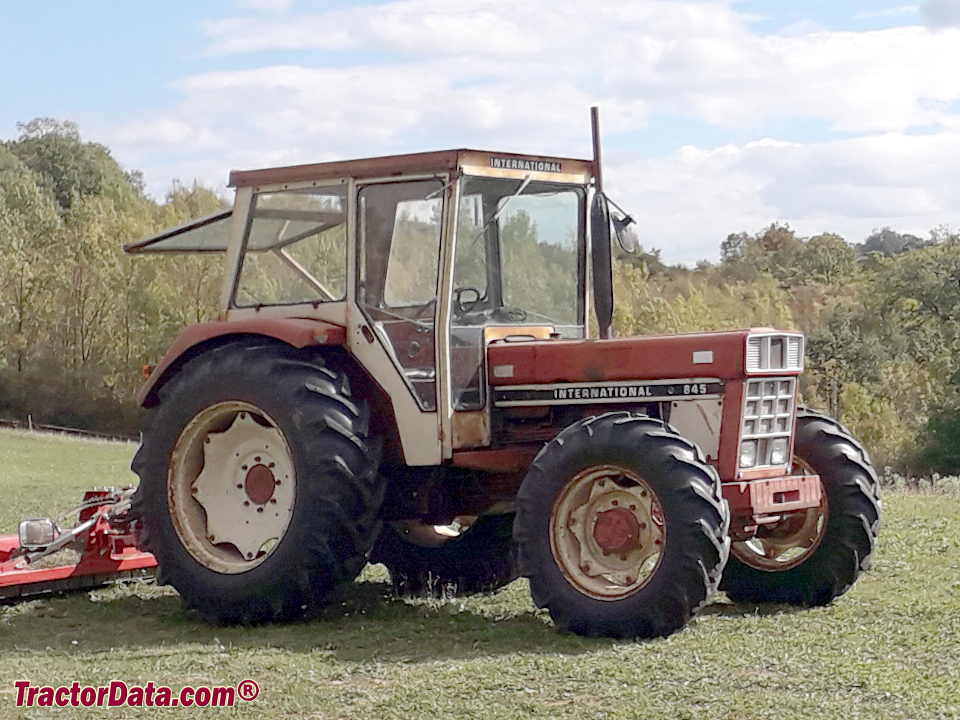

International Harvester 845
|
|
| Production | |
| Manufacturer | International Harvester |
| Row-Crop tractor | |
| Built in Saint Dizier, France | |
| International Harvester 845 Engine | |
| International Harvester 4.4L 4-cyl diesel | |
 Engine details ... |
| International Harvester 845 Transmissions | |
| 8-speed partially synchronized | |
| 12-speed partial power shift | |
| 16-speed partially synchronized | |
| 16-speed creeper | |
 Transmission details ... |
| International Harvester 845 Power | |
| Engine (gross) | 86 hp 64.1 kW |
| Engine (net) | 79 hp 58.9 kW |
| PTO (claimed) | 72.4 hp 54.0 kW |
| Mechanical | |
| Two- or four-wheel drive | |
| Final drives | planetary |
| Differential lock | mechanical rear |
| Power steering | |
| Hydraulics | |
| Pump flow | 7.9 gpm 29.9 lpm |
| Tractor hitch | |
| Rear Type | II |
| Rear lift | 6834 lbs 3099 kg |
| Power Take-off (PTO) | |
| Rear PTO Type | 540/1000 (1.375) |
| Dimensions & Tires | |
| 2WD Wheelbase | 93.7 inches 237 cm |
| 4WD Wheelbase | 92.1 inches 233 cm |
| Weight | 6923 to 7828 pounds |
| Front tire | 7.50-18 |
| 2WD Rear tire | 16.9/14-34 |
 Full dimensions and tires ... | |
| Electrical | |
| Ground | negative |
| Charging system | alternator |
| Charging amps | 33 |
| Battery volts | 12 |
| Battery AH | 110 |
| References | |
 | |

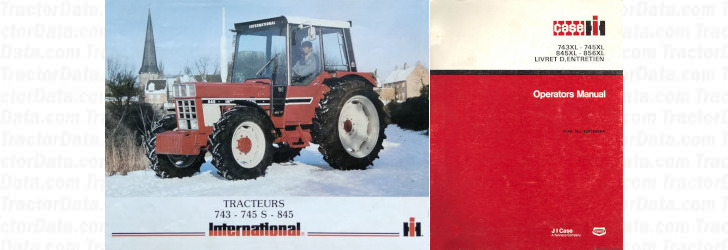

| Tracteurs 743 - 745 S - 845 published by International Harvester | |
| Operator's Manual 743 XL - 745 XL - 845 XL (1091846) published in 1981 |
