Claas Nexos 220
| | 2023 - |
| Nexos Series | | Orchard/Vineyard tractor | | Carraro built |
|
Series map:
Nexos 220
Nexos 230
60.3kw*
65.2kw*
*Estimated engine power for comparison only.
| Production |
| Distributor | Claas
|
| Manufacturer | Carraro
|
| Orchard/Vineyard tractor |
| Built in Rovigo, Italy |
| Claas Nexos 220 Power |
| Engine (max) | 85 hp
63.4 kW
|
| Mechanical |
| Two- or four-wheel drive |
| Power steering |
| Wet disc brakes |
| Cab or two-post mid-mount folding ROPS. |
| Photos |
| No photos of the Claas Nexos 220 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer. |
| Hydraulics |
| Type | open center
|
| Pressure | 2756 psi
190.0 bar
|
| Valves | 2 to 4
|
| Pump flow | 15.1 gpm
57.2 lpm
|
| | 21.7 gpmOptOptional
82.1 lpm
|
| Steering flow | 6.6 gpm
25.0 lpm
|
| Tractor hitch |
| Rear Type | II
|
| Front Hitch | II
|
| Power Take-off (PTO) |
| Rear PTO | independent
|
| Rear PTO Type | 540/1000 (1.375)
|
| Front PTO | independent OptOptional
|
| Front PTO Type | 1000
|
| Dimensions & Tires |
| S Wheelbase | 85.75 inches
217 cm
|
| MD Wheelbase | 83.27 inches
211 cm
|
| M Wheelbase | 85.75 inches
217 cm
|
| LD Wheelbase | 82.87 inches
210 cm
|
| L Wheelbase | 84.80 inches
215 cm
|
| XL Wheelbase | 84.80 inches
215 cm
|
| Weight | 6128.84 to 7572.87 pounds
|
 Full dimensions and tires ... |
| Electrical |
| Ground | negative
|
| Charging system | alternator
|
| Battery volts | 12
|
| References |
 |

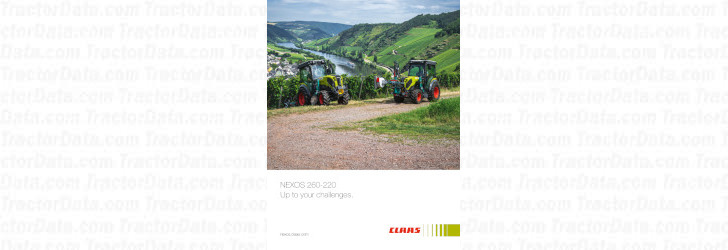

| Nexos published in 2024, by Claas |
