Claas Elios 210
|
|
| Production | |
| Distributor | Claas |
| Manufacturer | Carraro |
| Utility tractor | |
| Built in Rovigo, Italy | |
| Claas Elios 210 Engine | |
| FPT 3.4L 4-cyl diesel | |
| Fuel tank | 25.1 gal 95.0 L |
 Engine details ... | |
| Claas Elios 210 Transmissions | |
| 24-speed mechanical shuttle | |
| 24-speed two-speed power shift | |
 Transmission details ... |
| Claas Elios 210 Power | |
| Engine (gross) | 75 hp 55.9 kW |
| Engine (max) | 75 hp 55.9 kW |
| Mechanical | |
| Four-wheel drive | |
| Differential lock | electro-hydraulic front and rear |
| Power steering | |
| Wet disc brakes | |
| Trailer brakes | hydraulic OptOptional |
| Two-post folding ROPS. Cab available with heat. Optional air-conditioning. | |

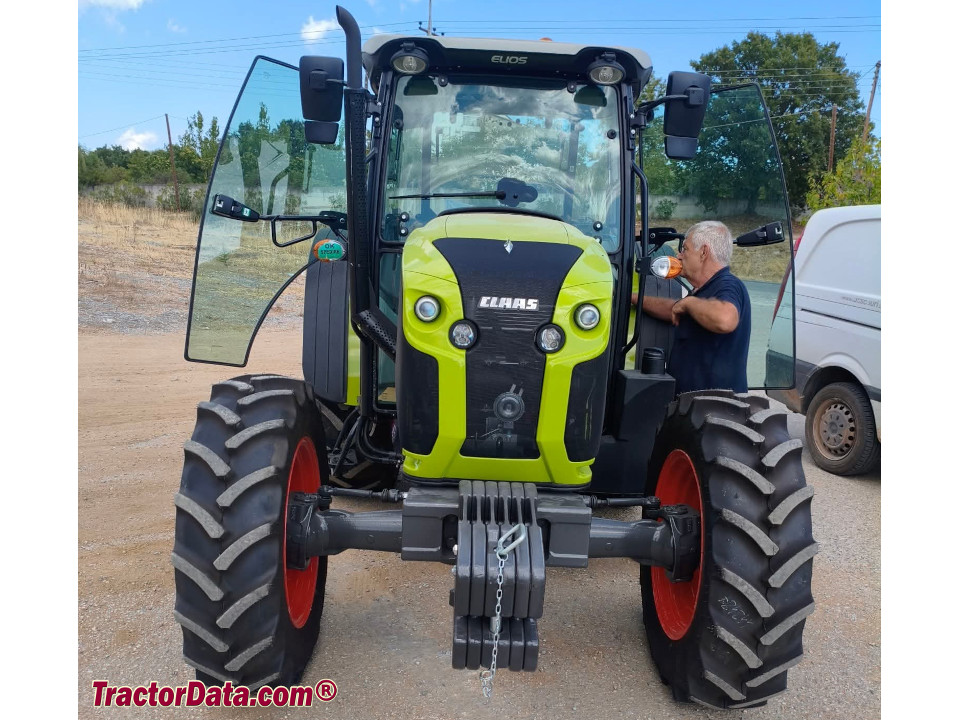

| Photos | |
 | |
 Claas Elios 210 photos... | |
| Hydraulics | |
| Pressure | 2756 psi 190.0 bar |
| Valves | 2 or 3 |
| Pump flow | 15.85 gpm 60.0 lpm |
| 23 gpmOptOptional 87.1 lpm | |
| Total flow | 23 gpm 87.1 lpm |
| 30.1 gpmOptOptional 113.9 lpm | |
| Steering flow | 7.1 gpm 26.9 lpm |
| Tractor hitch | |
| Rear Type | II |
| Rear lift (at 24"/610mm) | 5137 lbs 2330 kg |
| Front Hitch | II |
| Power Take-off (PTO) | |
| Rear PTO | independent |
| Rear PTO Type | 540/1000 (1.375) |
| Front PTO | independent OptOptional |
| Front PTO Type | 1000 |
| Dimensions & Tires | |
| Wheelbase | 85.9 inches 218 cm |
| Weight | 7187 to 7826 pounds |
 Full dimensions and tires ... | |
| Electrical | |
| Ground | negative |
| Charging system | alternator |
| Battery volts | 12 |
| References | |
 | |
| Elios published in 2023, by Claas |
