| | 2023 - |
| YM3 Series | | Compact Utility tractor |
|
Series map:
YM347
YM359
35.0kw
43.9kw
| Engine Detail |
| Yanmar 4TNV88C |
| diesel |
| 4-cylinder |
| liquid-cooled inline |
| Displacement | 133.6 ci
2.2 L
|
| Bore/Stroke | 3.46x3.54 inches
88 x 90 mm
|
| Emissions | Stage V
|
| Rated Power (gross) | 47 hp
35.0 kW
|
| Fuel system | direct injection common rail
|
| Rated RPM | 2800
|
| Torque | 105.2 lb-ft
142.7 Nm
|
| Starter | electric
|
| Starter volts | 12
|

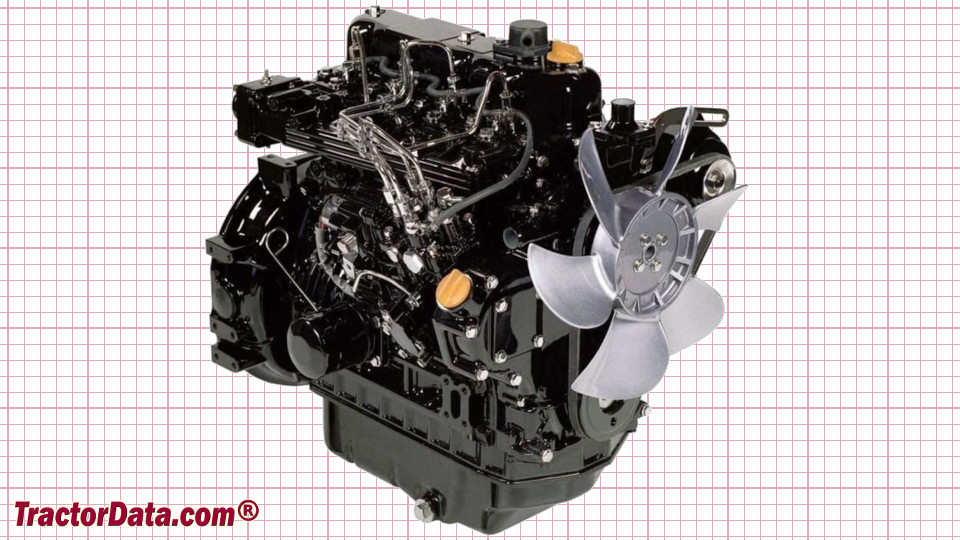

| Yanmar YM347 Engine |
 |
