Kubota L1-385
|
|
| Production | |
| Manufacturer | Kubota |
| Compact Utility tractor | |
| Variants | |
| L1-385D | 4WD |
| L1-385DN | loader-compatible |
| Kubota L1-385 Engine | |
| Kubota 2.2L 5-cyl diesel | |
| Fuel tank | 12.2 gal 46.2 L |
 Engine details ... | |
| Kubota L1-385 Power | |
| Engine | 38 hp 28.3 kW |
| PTO (claimed) | 36.7 hp 27.4 kW |
| Mechanical | |
| Two- or four-wheel drive | |
| Four-post ROPS. |

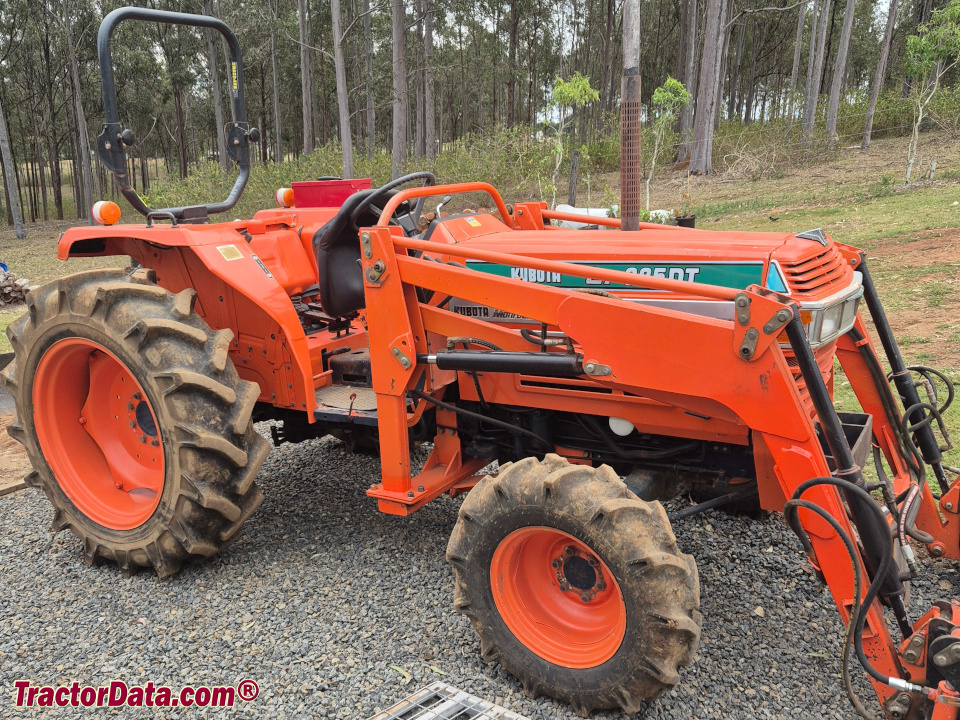

| Photos | |
 | |
 Kubota L1-385 photos... | |
| Tractor hitch | |
| Rear Type | JIS1 |
| Power Take-off (PTO) | |
| Rear PTO | independent |
| Rear PTO Type | 540 (1.375) |
| Engine RPM | 544@2600 |
| 714@2600 | |
| 912@2600 | |
| 1196@2600 | |
| Dimensions & Tires | |
| Wheelbase | 76.6 inches 194 cm |
| Weight | 3594 to 3814 pounds |
| Front tire | 5.50-16 |
| 2WD Rear tire | 12.4-28 |
 Full dimensions and tires ... | |
| Electrical | |
| Ground | negative |
| Battery volts | 12 |
| References | |
 | |
| Operator Manual L1 (30810-1921-4) |
