| | 1952 - 1957 |
| Orchard/Vineyard tractor |
|
Series map:
60 Orchard
41.6hp*
*Estimated engine power for comparison only.
| Engine Detail |
| John Deere |
| gasoline |
| 2-cylinder |
| liquid-cooled inline |
| Displacement | 321 ci
5.3 L
|
| Bore/Stroke | 5.50x6.75 inches
140 x 171 mm
|
| Fuel system | duplex carburetor
|
| Air cleaner | oil bath
|
| Compression | 6.1:1
|
| Rated RPM | 975
|
| Firing order | 1-2
|
| Starter | electric
|
| Starter volts | 12
|
| Coolant capacity | 33 qts
31.2 L
|

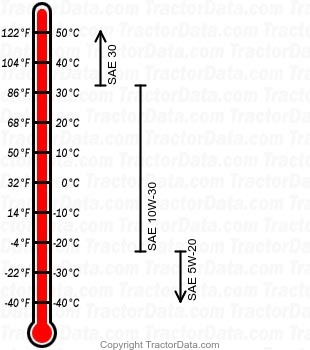

| Engine Oil |
|
| Oil capacity | 8 qts
7.6 L
|
