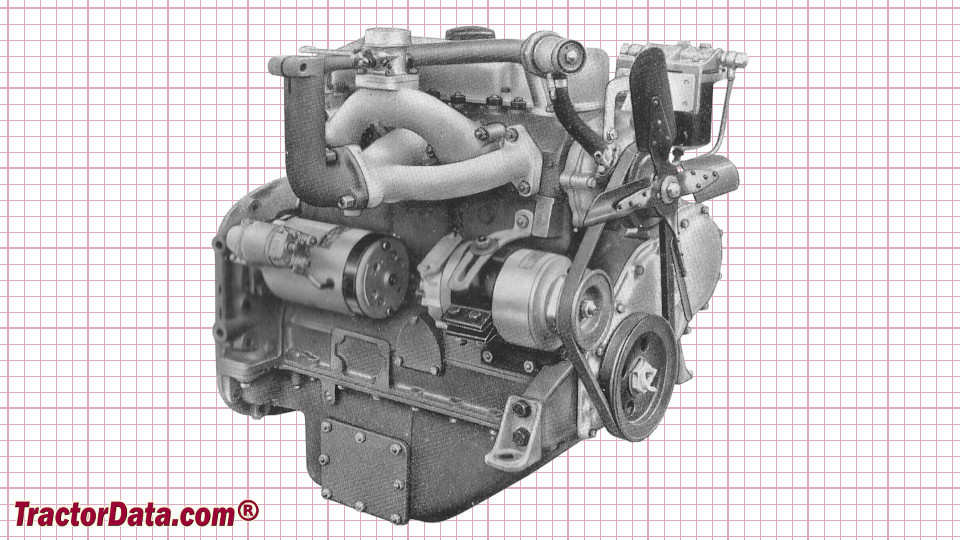

Fiat 25R Engine
|
|
| Engine Detail | |
| Fiat 605.010 | |
| diesel | |
| 4-cylinder | |
| liquid-cooled inline | |
| Displacement | 116 ci 1.9 L |
| Bore/Stroke | 3.23x3.54 inches 82 x 90 mm |
| Power | 25 hp 18.6 kW |
| Compression | 20:1 |
| Rated RPM | 2000 |
| Torque | 69.4 lb-ft 94.1 Nm |
| Torque RPM | 1200 |
| Firing order | 1-3-4-2 |
| Starter | electric |
| Starter volts | 24 |
| Coolant capacity | 10.6 qts 10.0 L |
| Fiat 25R Engine | |
 |
