Yanmar AF-28
|
|
| Production | |
| Manufacturer | Yanmar |
| Compact Utility tractor | |
| Yanmar AF-28 Engine | |
| Yanmar 1.5L 3-cyl diesel | |
| Fuel tank | 10 gal 37.9 L |
 Engine details ... | |
| Yanmar AF-28 Transmissions | |
| 16-speed shuttle | |
| 16-speed four-speed power shift | |
 Transmission details ... |
| Yanmar AF-28 Power | |
| Engine | 27.6 hp 20.6 kW |
| Mechanical | |
| Four-wheel drive | |
| Power steering | |
| Two-post ROPS. Cab optional. |

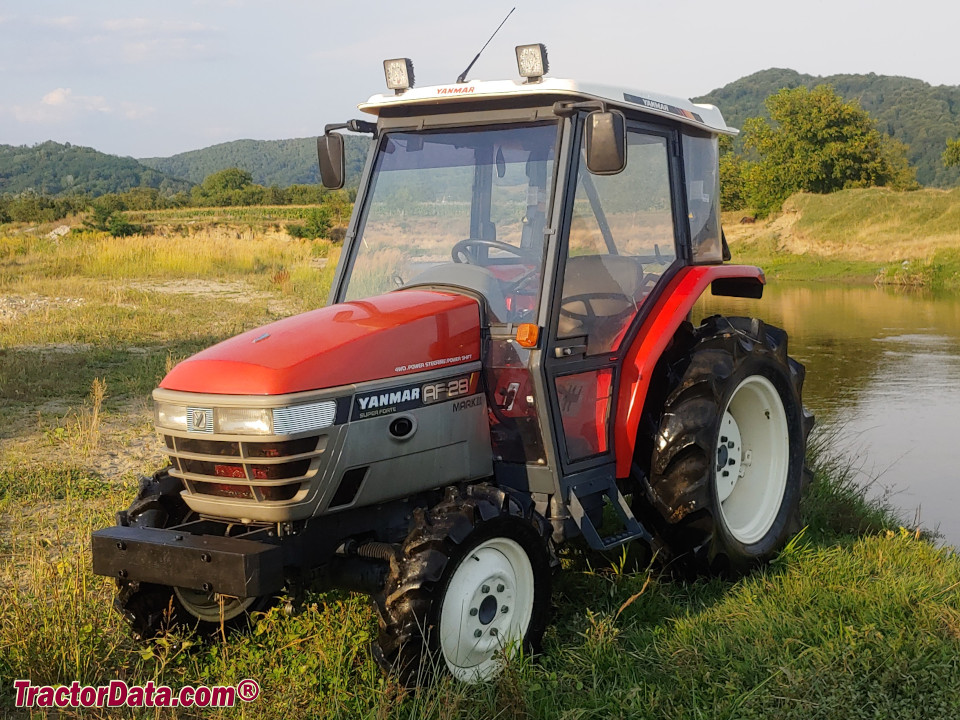

| Photos | |
 | |
 Yanmar AF-28 photos... | |
| Tractor hitch | |
| Rear Type | JIS1 |
| Power Take-off (PTO) | |
| Rear PTO Type | 540 (1.375) |
| Engine RPM | 551@2500 |
| 756@2500 | |
| 963@2500 | |
| 1293@2500 | |
| -694@2500 | |
| Dimensions & Tires | |
| Wheelbase | 64.6 inches 164 cm |
| Weight | 2767 lbs 1255 kg |
| Front tire | 7-16 |
| Rear tire | 12.4-24 |
 Full dimensions and tires ... | |
| Electrical | |
| Ground | negative |
| Charging system | alternator |
| Charging amps | 35 |
| Battery volts | 12 |
| Battery AH | 70 |
| References | |
 | |
| Super-Forte Mark III (198071-90015) published in 1992 |
