Tractors > Bad Boy > 4025

Bad Boy 4025



Bad Boy 4025 tractor photo
2021 -
40 Series
Compact Utility tractor
TYM built
Series map:
4025
4035
24.5hp
34.9hp
Production
DistributorBad Boy
ManufacturerTYM
Compact Utility tractor
Bad Boy 4025 Engine
TYM 1.7L 3-cyl diesel
Fuel tank7.1 gal
26.9 L
Engine details ...
Bad Boy 4025 Transmission
hydrostatic
Transmission details ...
Bad Boy 4025 Power
Engine (gross)24.5 hp
18.3 kW
PTO (claimed)19.1 hp
14.2 kW
Mechanical
Four-wheel drive
Differential lockmechanical rear
Power steering
Wet disc brakes
Two-post folding ROPS.
Photos
No photos of the Bad Boy 4025 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Hydraulics
Typeopen center
Pump flow11.5 gpm
43.5 lpm
Total flow7.5 gpm
28.4 lpm
Steering flow4 gpm
15.1 lpm
Tractor hitch
Rear TypeI
Rear lift (at ends)3306 lbs
1499 kg
Rear lift (at 24"/610mm)2420 lbs
1097 kg
Power Take-off (PTO)
Rear PTOindependent
Rear PTO Type540 (1.375)
Dimensions & Tires
Wheelbase65.7 inches
166 cm
Weight2970 lbs
1347 kg
Full dimensions and tires ...
Bad Boy 4025 attachments
front-end loader
backhoe
Attachment details ...
4025 Serial Numbers
Location:Serial number decal on the right side of the tractor frame, above the front axle.
Electrical
Groundnegative
Charging systemalternator
Charging amps50
Battery CCA540
Battery volts12
References

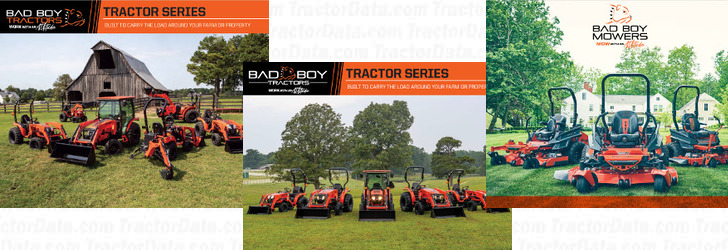

4025 references literature
Tractor Series published in 2021, by Bad Boy
Tractor Series published in 2023, by Bad Boy*
Mow with an Attitude published in 2024, by Bad Boy
*Publication contains known errors.

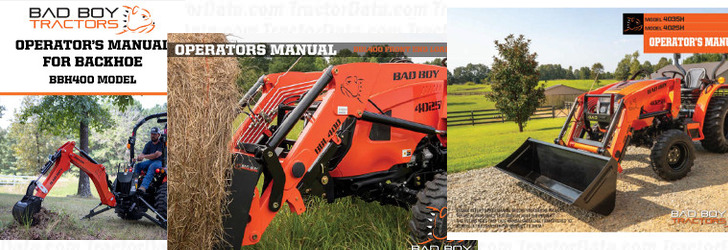

4025 manuals literature
Operator's Manual Model BBH400 Backhoe published in 2022
Operator's Manual Model BBL400 Front End Loader published in 2022
Operator's Manual Model 4025H/4035H published in 2021
