Bad Boy 3026
|
|
| Production | |
| Distributor | Bad Boy |
| Manufacturer | TYM |
| Compact Utility tractor | |
| Bad Boy 3026 Engine | |
| TYM 1.2L 3-cyl diesel | |
| Fuel tank | 6.1 gal 23.1 L |
 Engine details ... | |
| Bad Boy 3026 Transmission | |
| hydrostatic | |
 Transmission details ... |
| Bad Boy 3026 Power | |
| Engine (gross) | 24 hp 17.9 kW |
| PTO (claimed) | 18 hp 13.4 kW |
| Mechanical | |
| Four-wheel drive | |
| Differential lock | mechanical rear |
| Power steering | |
| Wet disc brakes | |
| Two-post folding ROPS. | |
| Photos | |
| No photos of the Bad Boy 3026 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer. | |
| Hydraulics | |
| Type | open center |
| Pump flow | 4.3 gpm 16.3 lpm |
| Total flow | 7.4 gpm 28.0 lpm |
| Steering flow | 3.1 gpm 11.7 lpm |
| Tractor hitch | |
| Rear Type | I |
| Control | position control |
| Rear lift (at ends) | 1433 lbs 650 kg |
| Rear lift (at 24"/610mm) | 650 lbs 294 kg |
| Power Take-off (PTO) | |
| Rear PTO | independent |
| Rear PTO Type | 540 (1.375) |
| Engine RPM | 540@2600 |
| 960@2600 | |
| Mid PTO | independent OptOptional |
| Engine RPM | 2500@2600 |
| Dimensions & Tires | |
| Wheelbase | 65.7 inches 166 cm |
| Weight | 2107 lbs 955 kg |
 Full dimensions and tires ... | |
| Bad Boy 3026 attachments | |
| front-end loader | |
| backhoe | |
 Attachment details ... |
| 3026 Serial Numbers | |
| Location: | Serial number decal on the right side of the tractor frame, above the front axle. |
| Electrical | |
| Ground | negative |
| Charging system | alternator |
| Battery CCA | 540 |
| Battery volts | 12 |
| References | |
 | |
| Tractor Series published in 2021, by Bad Boy | |
| Tractor Series published in 2023, by Bad Boy | |
| Mow with an Attitude published in 2024, by Bad Boy | |
 | |

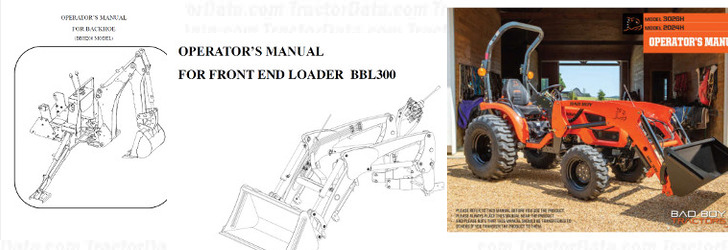

| Operator's Manual Model BBH200 Backhoe published in 2022 | |
| Operator's Manual Model BBL300 Front End Loader published in 2022 | |
| Operator's Manual Model 2024H/3026H published in 2021 |
