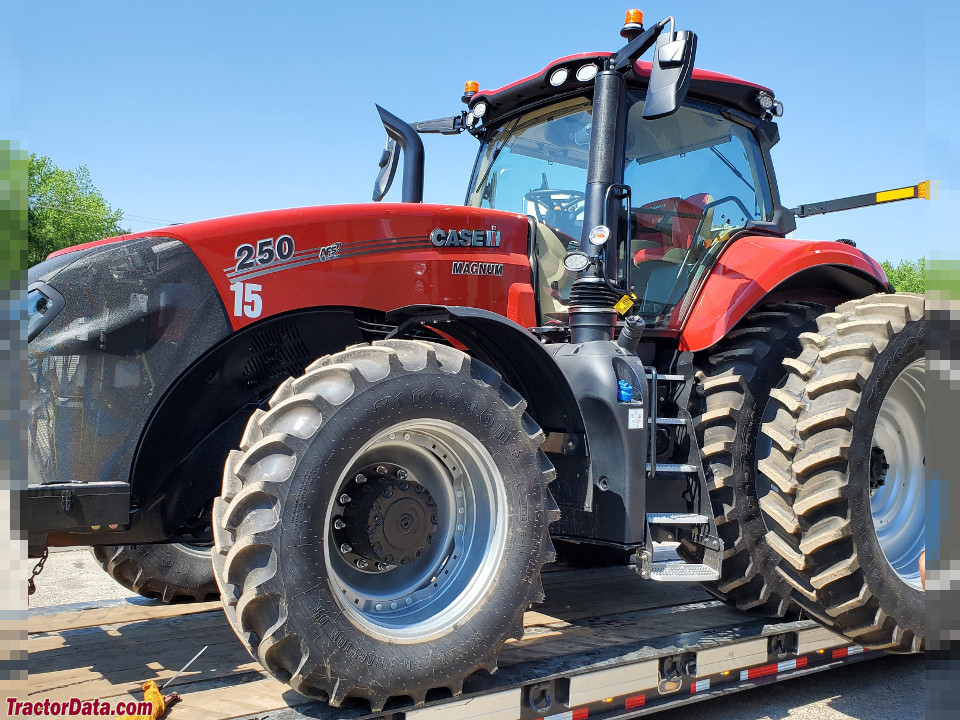

CaseIH Magnum 250
|
|
| Production | |
| Manufacturer | CaseIH (a part of CNH) |
| Row-Crop tractor | |
| Original price | $416,448 (2024 PS ) |
| $424,328 (2024 CVT ) | |
| CaseIH Magnum 250 Engine | |
| FPT 6.7L 6-cyl diesel | |
| PS Fuel tank | 179 gal 677.5 L |
| CVT Fuel tank | 163 gal 617.0 L |
| Exhaust fluid (DEF) | 26 gal 98.4 L |
 Engine details ... | |
| CaseIH Magnum 250 Transmissions | |
| 19-speed full power shift | |
| continuously-variable transmission | |
| 18-speed full power shift | |
 Transmission details ... |
| CaseIH Magnum 250 Power | |
| Engine (gross) | 247 hp 184.2 kW |
| Engine (max) | 281 hp 209.5 kW |
| PTO (claimed) | 205 hp 152.9 kW |
| Mechanical | |
| Four-wheel drive | |
| Power steering | |
| Hydraulic wet disc brakes | |
| Trailer brakes | hydraulic OptOptional |
| pneumatic OptOptional | |
| Cab standard with air-conditioning. | |
| Photos | |
 | |
 CaseIH Magnum 250 photos... | |
| Hydraulics | |
| Type | pressure flow compensating (PFC) |
| Valves | 4 to 6 |
| Pump flow | 44 gpm 166.5 lpm |
| 59 gpmOptOptional 223.3 lpm | |
| 75 gpmOptOptional 283.9 lpm | |
| Tractor hitch | |
| Rear Type | III/IIIN |
| Rear lift | 14000 lbs 6350 kg |
| Front lift | 9426 lbs 4275 kg |
| Power Take-off (PTO) | |
| Rear PTO | independent |
| Rear PTO Type | 1000 (1.75) |
| 540/1000 (1.375)OptOptional | |
| Front PTO | independent |
| Front PTO Type | 1000 (1.375) |
| Dimensions & Tires | |
| PS Wheelbase | 120 inches 304 cm |
| CVT Wheelbase | 122 inches 309 cm |
| Weight | 28600 lbs 12972 kg |
| Front tire | 420/85R34 |
| Rear tire | 480/80R50 |
 Full dimensions and tires ... | |
| Electrical | |
| Ground | negative |
| Charging system | alternator |
| Charging amps | 240 |
| Batteries | 2 |
| Battery volts | 12 |
| References | |
 | |
| AFS Connect Magnum published in 2021, by CaseIH |
