Iseki TH235

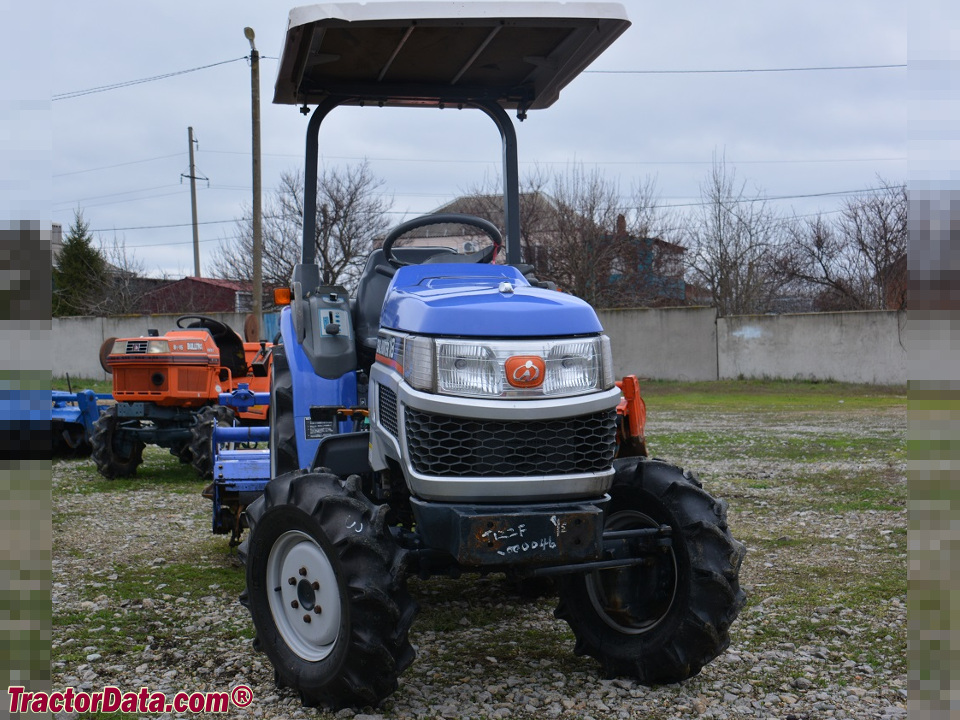

Iseki TH235 tractor photo
2010 - 2016
TH5 Series
Compact Utility tractor
Series map:
TH215
TH235
TH255
15.8kw
17.3kw
18.4kw
Production
ManufacturerIseki
Compact Utility tractor
Iseki TH235 Engine
Iseki 1.5L 3-cyl diesel
Fuel tank6.6 gal
25.0 L
Engine details ...
Iseki TH235 Transmissions
12-speed gear
24-speed partial power shift
Transmission details ...
Iseki TH235 Power
Engine23.2 hp
17.3 kW
Mechanical
Four-wheel drive
Power steering
Wet disc brakes
Two-post folding ROPS. Cab optional with air-conditioning.
Tractor hitch
Rear TypeJIS0
Power Take-off (PTO)
Rear PTO Type540 (1.375)
Engine RPM523@2500
 783@2500
 1184@2500
Dimensions & Tires
Weight1973 to 2877 pounds
Front tire6-14
Rear tire9.5-22
Full dimensions and tires ...
Electrical
Groundnegative
Battery volts12
Battery AH55
References
TH235 references literature
TH5 Series - Stylish Field Work published in 2016, by Iseki
Operator's Manual TH5 Series (1765-912-011-0) published in 2016
