Claas Arion 650

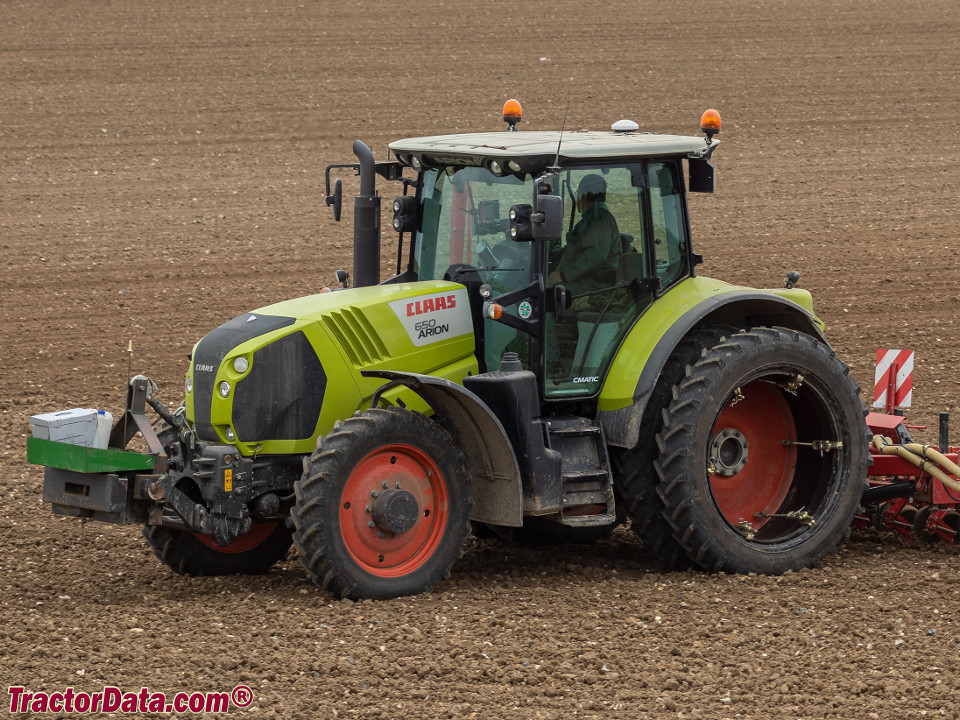

Claas Arion 650 tractor photo
2012 - 2025
Model year
Arion 600 Series
Row-Crop tractor
Series map:
Arion 630
Arion 650
Arion 660
115.6kw
130.5kw
130.5kw
Production
ManufacturerClaas
Row-Crop tractor
Claas Arion 650 Engine
John Deere 6.8L 6-cyl diesel
Fuel tank97 gal
367.1 L
Engine details ...
Claas Arion 650 Transmissions
24-speed six-speed power shift
continuously-variable transmission
Transmission details ...
Claas Arion 650 Power
Engine (net)175 hp
130.5 kW
Mechanical
Four-wheel drive
Differential lockelectro-hydraulic
Power steering
Hydraulic wet disc brakes
Cab standard with air-conditioning.
Hydraulics
Typeload sensing
Pressure2900 psi
200.0 bar
Valves2 to 4
Pump flow29.1 gpm
110.1 lpm
 39.6 gpm ((Optional)
149.9 lpm
Tractor hitch
Rear TypeIII
Rear lift (at 24"/610mm)11244 lbs
5100 kg
Power Take-off (PTO)
Rear PTOindependent
Clutchwet disc
Rear PTO Type540/1000 (1.375)
Front PTOindependent OptOptional
Front PTO Type1000
Dimensions & Tires
Wheelbase111 inches
281 cm
Weight15338 lbs
6957 kg
Full dimensions and tires ...
Electrical
Groundnegative
Charging systemalternator
Battery volts12
References
Arion 650 references literature
Arion published in 2023, by Claas
