Massey Ferguson 174-4

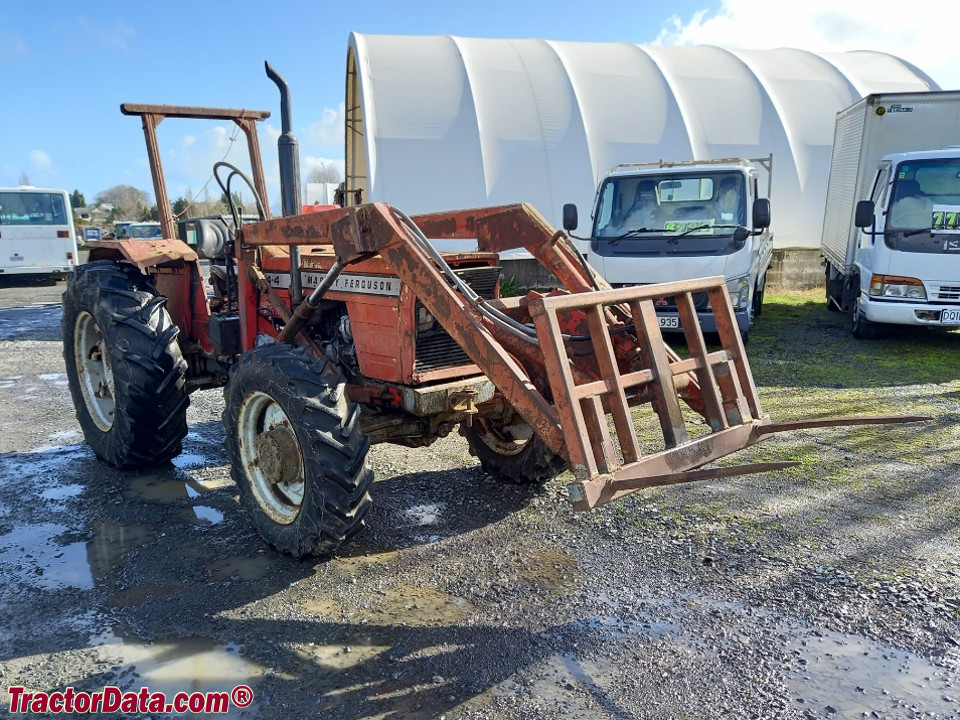

Massey Ferguson 174-4 tractor photo
1973 - 1983
104 Series
Utility tractor
Landini built
Series map:
154-4
174-4
184-4
37.3kw
48.5kw
50.7kw
Production
DistributorMassey Ferguson
ManufacturerLandini
Utility tractor
Built in Italy
Variants
1742WD
174-44WD
174Cag crawler
6500similar Landini model
Massey Ferguson 174-4 Power
Engine65 hp
48.5 kW
Mechanical
Four-wheel drive
Differential lockmechanical rear
Power steering
Dry disc brakes
Open operator station. Cab optional.
Capacity
Fuel16 gal
60.6 L
Hydraulic system5.5 gal
20.8 L
Hydraulics
Typeopen center
Capacity5.5 gal
20.8 L
Pressure2418 psi
166.7 bar
Pump flow7.4 gpm
28.0 lpm
Tractor hitch
Rear TypeII
Controlposition and draft control
Rear lift (at ends)5842 lbs
2649 kg
Power Take-off (PTO)
Rear PTOindependent
Clutchdry disc
Rear PTO Type540 (1.375)
 540/1000 (1.375)OptOptional
Engine RPM540@1944
 1000@1916
Dimensions & Tires
Wheelbase85.8 inches
217 cm
Weight5490 lbs
2490 kg
Front tire9.5/9-24
Rear tire14.9/13-30
Full dimensions and tires ...
174-4 Serial Number Location
Massey Ferguson 174-4 serial number location
Serial number stamped into the rear of the tractor, above and to the left of the PTO shaft.
Electrical
Groundnegative
Battery volts12
Battery AH92
References
174-4 references literature
Operator Instruction Book 154 - 174 - 184 - 194 (3300912M2)*
MF174-4 published in 1977, by Massey Ferguson
*Publication contains known errors.
