| | 2008 - 2024 |
|
| 5E Series | | Utility tractor |
|
Series map:
5067E
5075E
67.6hp
74.0hp
| Transmissions overview |
| 9-speed partially synchronized |
| 12-speed power shuttle |
| Transmission |
| Transmission | SyncShuttle
|
| Type | partially synchronized
|
| Gears | 9 forward and 3 reverse
|
| Clutch | dry disc
|
| Three synchronized gears in three ranges. Tractor must be stopped, and clutch used, to shift range. |

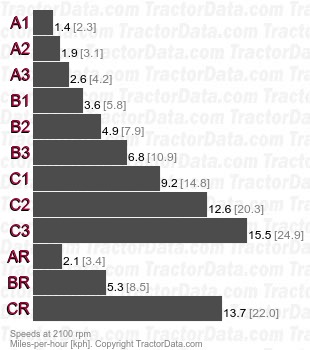

| Speeds |
| With 16.9-28 rear tires. |
|
| Transmission |
| Transmission | PowrReverser
|
| Type | power shuttle
|
| Gears | 12 forward and reverse
|
| Clutch | wet disc
|
| Four synchronized gears (1-4) in three ranges (A-C) with power shuttle. Tractor must be stopped, and clutch used, to shift range. |

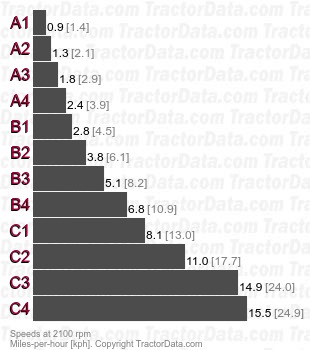

| Speeds |
| With 16.9-28 rear tires. Reverse speeds are 8% faster than forward. |
|
