John Deere 5067E Transmission


John Deere 5067E tractor photo
2023 -
5E Series
Utility tractor
Series map:
5060E
5067E
5075E
60.4hp
67.6hp
74.0hp
Transmission options
9-speed partially synchronized
12-speed power shuttle
Transmission
TransmissionSyncShuttle
Typepartially synchronized
Gears9 forward and 3 reverse
Clutchdry disc
Three synchronized gears in three ranges. Tractor must be stopped, and clutch used, to shift range.
Speeds
With 16.9-28 rear tires.

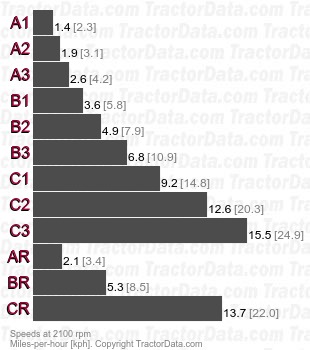

5067E SyncShuttle partially synchronized speeds
Transmission
TransmissionPowrReverser
Typepower shuttle
Gears12 forward and reverse
Clutchwet disc
Four synchronized gears (1-4) in three ranges (A-C) with power shuttle. Tractor must be stopped, and clutch used, to shift range.
Speeds
With 16.9-28 rear tires. Reverse speeds are 8% faster than forward.

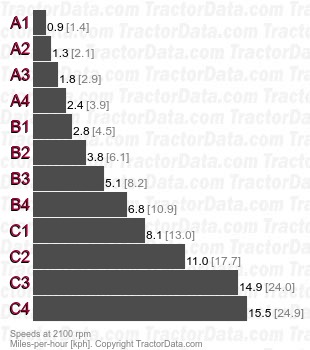

5067E PowrReverser power shuttle speeds
