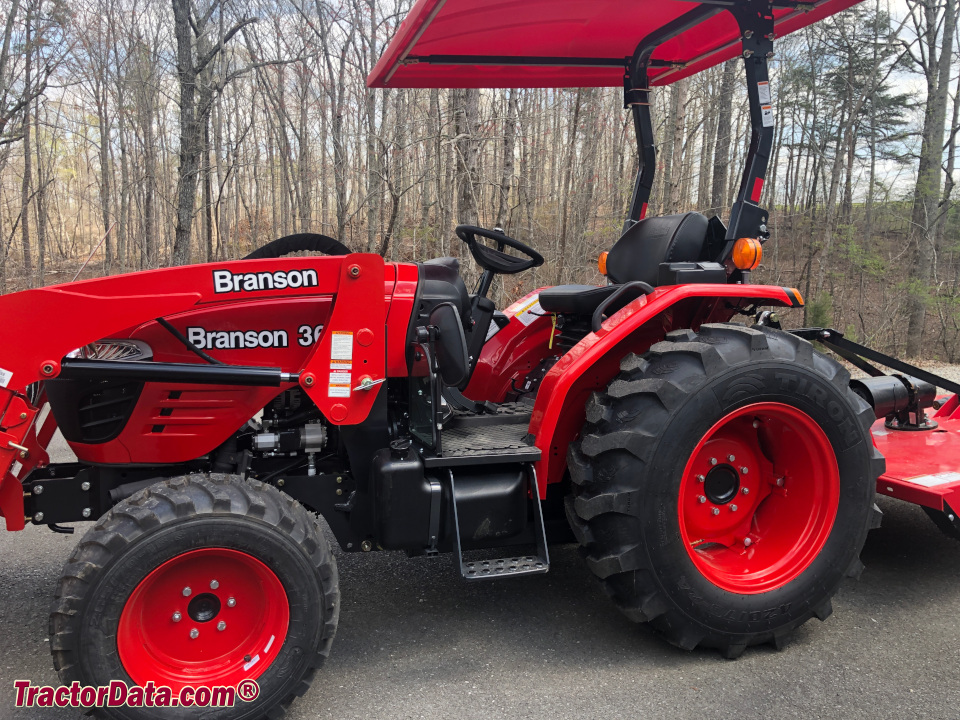

Branson 3620H
|
|
| Production | |
| Manufacturer | Branson (a part of TYM) |
| Compact Utility tractor | |
| Variants | |
| 3620R | shuttle |
| 3620H | hydrostatic |
| Branson 3620H Engine | |
| Kukje 1.7L 3-cyl diesel | |
| Fuel tank | 11.8 gal 44.7 L |
 Engine details ... | |
| Branson 3620H Transmission | |
| hydrostatic | |
 Transmission details ... |
| Branson 3620H Power | |
| Engine | 35 hp 26.1 kW |
| PTO (claimed) | 29.6 hp 22.1 kW |
| Mechanical | |
| Four-wheel drive | |
| Two-post folding ROPS. |
| Photos | |
| No photos of the Branson 3620H are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer. | |
| Hydraulics | |
| Pump flow | 13.7 gpm 51.9 lpm |
| Power Take-off (PTO) | |
| Rear PTO | independent |
| Rear PTO Type | 540 (1.375) |
| Engine RPM | 584@2600 |
| Dimensions & Tires | |
| Wheelbase | 71.1 inches 180 cm |
| Weight | 3714 lbs 1684 kg |
| Front tire | 9.5-16 |
| Rear tire | 12.4-28 |
 Full dimensions and tires ... | |
| Branson 3620H attachments | |
| front-end loader | |
| backhoe | |
 Attachment details ... |
| References | |
 | |
| 20 Series published in 2021, by Branson |
