| | 1990 - 1995 |
| 88 Series | | Utility tractor |
|
| Transmissions overview |
| 12-speed |
| 20-speed creeper |
| 12-speed shuttle |
| Transmission |
| Gears: | 12 forward and 4 reverse
|
| Clutch: | 279.4mm dry disc
|
| Oil capacity: | 51.8 qts
49.0 L
|

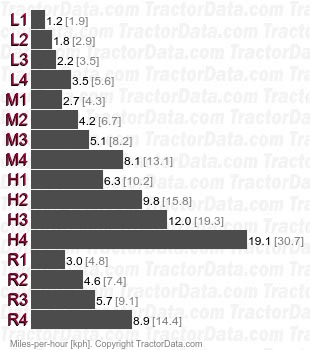

| Speeds |
| With 13.6-36 rear tires. |
|
| Transmission |
| Type: | creeper
|
| Gears: | 20 forward and 8 reverse
|
| Transmission |
| Type: | shuttle
|
| Gears: | 12 forward and reverse
|
