Fiat 570 Transmission
|
|
| Transmissions overview | |
| 8-speed partially synchronized | |
| 16-speed creeper | |
| 8-speed mechanical shuttle |
| Transmission | |
| Type: | partially synchronized |
| Gears: | 8 forward and 2 reverse |
| Clutch: | 279.4 dry disc |
| Four gears (1-4), plus reverse (R), in two ranges. Gears 3/4 and 7/8 are synchronized. | |

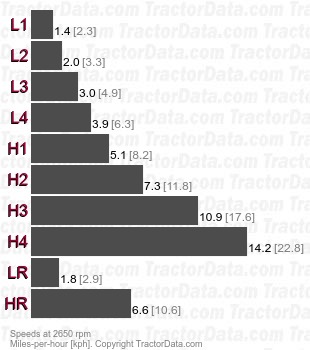

| Speeds | |
| With 13.6/12-24 rear tires. | |
|
| Transmission | |
| Type: | creeper |
| Gears: | 16 forward and 4 reverse |
| Clutch: | 279.4 dry disc |
| Four gears (1-4), plus reverse (R), in four ranges. Also available in a three range (12-speed) version. | |

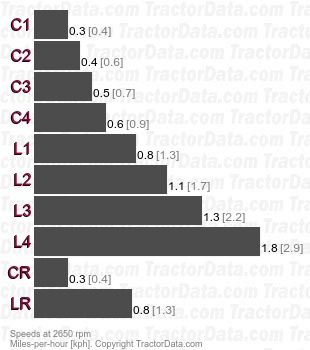

| Speeds | |
| With 13.6/12-24 rear tires. | |
|
| Transmission | |
| Type: | mechanical shuttle |
| Gears: | 8 forward and reverse |
| Clutch: | 279.4 dry disc |
| Four gears (1-4) in two ranges with mechanical shuttle. | |

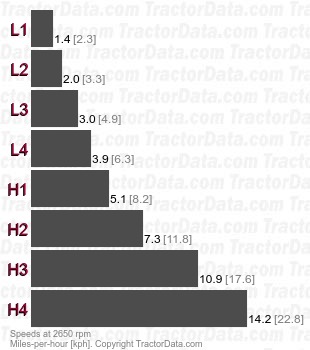

| Speeds | |
| With 13.6/12-24 rear tires. Reverse speeds are 10% slower than forward. | |
|
