CaseIH Puma 220

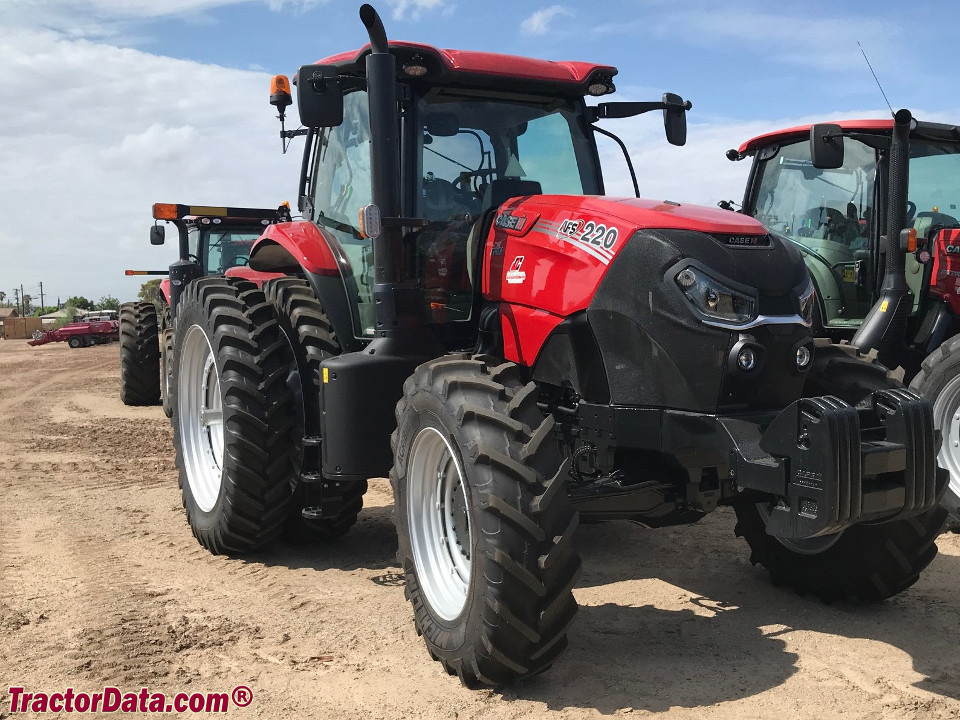

CaseIH Puma 220 tractor photo
2014 - 2025
Model year
Puma Series
Row-Crop tractor
Series map:
Puma 200
Puma 220
Puma 240
200.0hp
220.0hp
240.0hp
Production
ManufacturerCaseIH
Row-Crop tractor
CaseIH Puma 220 Transmissions
18-speed full power shift
continuously-variable transmission
Transmission details ...
CaseIH Puma 220 Power
Engine (gross)220 hp
164.1 kW
Engine (max)260 hp
193.9 kW
PTO (claimed)190 hp
141.7 kW
Mechanical
Four-wheel drive
Power steering
Cab standard.
Capacity
Fuel104.3 gal
394.8 L
Exhaust fluid (DEF)15 gal
56.8 L
Hydraulic system22 gal
83.3 L
Hydraulics
Typeclosed center
Capacity22 gal
83.3 L
Valves3 to 5
Mid valves2 or 3 OptOptional
SCV flow25 gpm (mechanical)
94.6 lpm
 29 gpm (electronic)
109.8 lpm
Steering flow17 gpm
64.3 lpm
Tractor hitch
Rear TypeIIIN/II
Rear lift (at 24"/610mm)9450 lbs
4286 kg
 12000 lbsOptOptional
5443 kg
 14500 lbsOptOptional
6577 kg
Power Take-off (PTO)
Rear PTOindependent
Rear PTO Type540/1000 (1.375)
 1000/1000E
 540E/1000
Front PTOindependent OptOptional
Front PTO Type1000 (1.375)
Engine RPM1000@1895
Dimensions & Tires
Wheelbase113.6 inches
288 cm
Weight15900 to 16800 pounds
Full dimensions and tires ...
Electrical
Charging systemalternator
Charging amps150
 200 OptOptional
Battery CCA1300
Battery volts12
