Kioti CS2220
|
|
| Production | |
| Manufacturer | Kioti (a part of Daedong) |
| Compact Utility tractor | |
| Kioti CS2220 Engine | |
| Daedong 1.0L 3-cyl diesel | |
| Fuel tank | 6.7 gal 25.4 L |
 Engine details ... | |
| Kioti CS2220 Transmission | |
| hydrostatic | |
 Transmission details ... |
| Kioti CS2220 Power | |
| Engine (gross) | 21 hp 15.7 kW |
| PTO (claimed) | 16.3 hp 12.2 kW |
| Mechanical | |
| Differential lock | mechanical rear |
| Power steering | |
| Wet disc brakes | |
| Two-post folding ROPS. | |

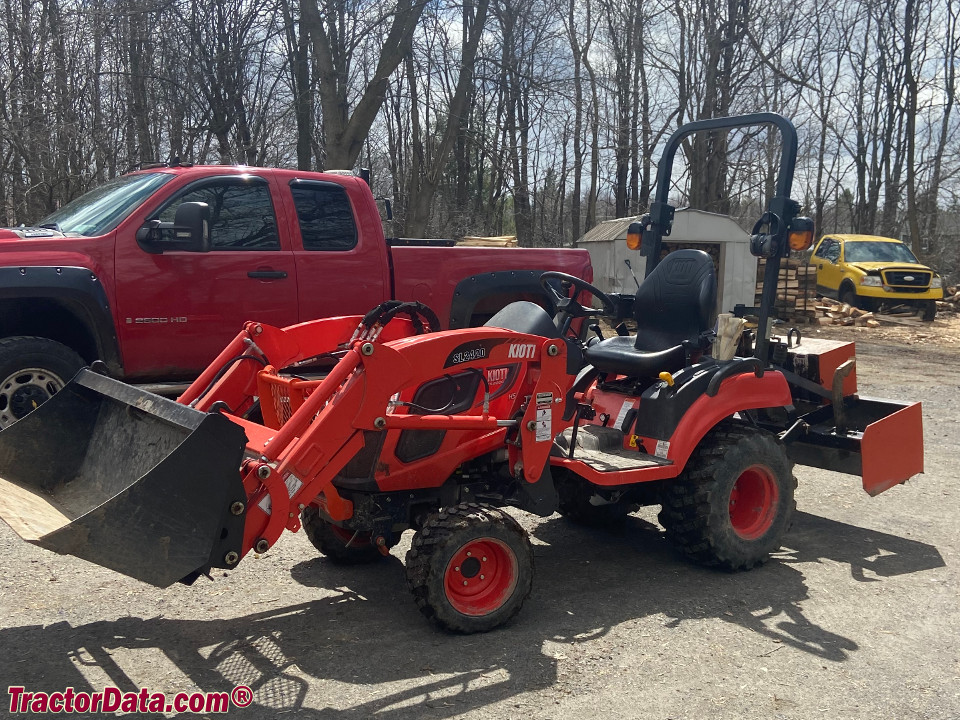

| Photos | |
 | |
 Kioti CS2220 photos... | |
| Hydraulics | |
| Type | open center |
| Pump flow | 6.97 gpm 26.4 lpm |
| Tractor hitch | |
| Rear Type | I |
| Control | position control |
| Rear lift (at 24"/610mm) | 700 lbs 317 kg |
| Power Take-off (PTO) | |
| Rear PTO | independent |
| Rear PTO Type | 540 (1.375) |
| Mid PTO | independent |
| Mid PTO Type | 2200 |
| Dimensions & Tires | |
| Wheelbase | 55.1 inches 139 cm |
| Weight | 1554 lbs 704 kg |
 Full dimensions and tires ... | |
| Kioti CS2220 attachments | |
| 54" mid-mount mower deck | |
| 60" mid-mount mower deck | |
| front-end loader | |
| backhoe | |
 Attachment details ... |
| Electrical | |
| Ground | negative |
| Battery volts | 12 |
| References | |
 | |
| CS Series published in 2020, by Kioti |
