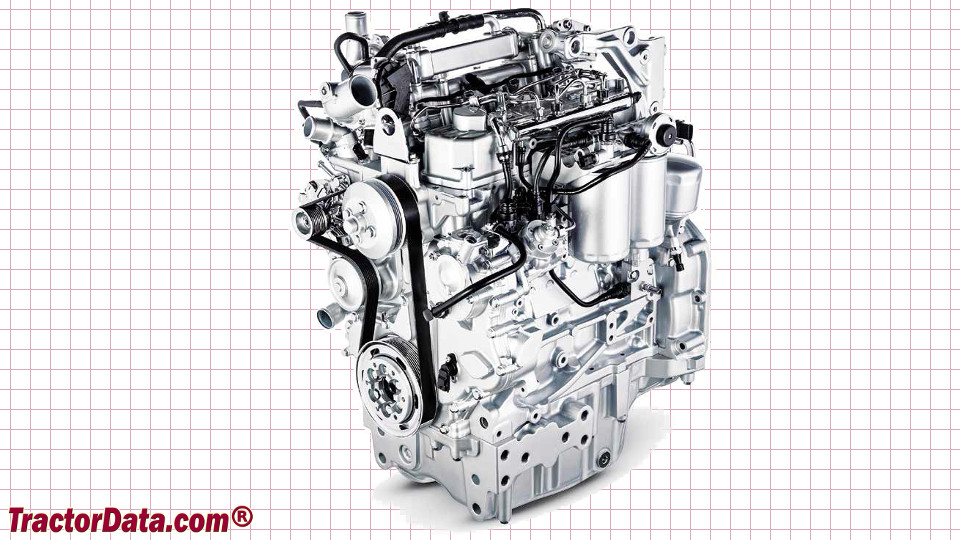

CaseIH Luxxum 110 Engine

CaseIH Luxxum 110 tractor photo
2016 - 2023
Model year
Luxxum Series
Utility tractor
Series:Luxxum 100Luxxum 110Luxxum 120
Engine Detail
turbocharged diesel
Displacement:207 ci
3.4 L
Bore/Stroke:3.90x4.33 inches
99 x 110 mm
Emissions:Stage IV
Rated Power (ECE R120):107 hp
79.8 kW
Rated RPM:2200
Torque:348 lb-ft
471.9 Nm
Torque RPM:1500
Starter volts:12
