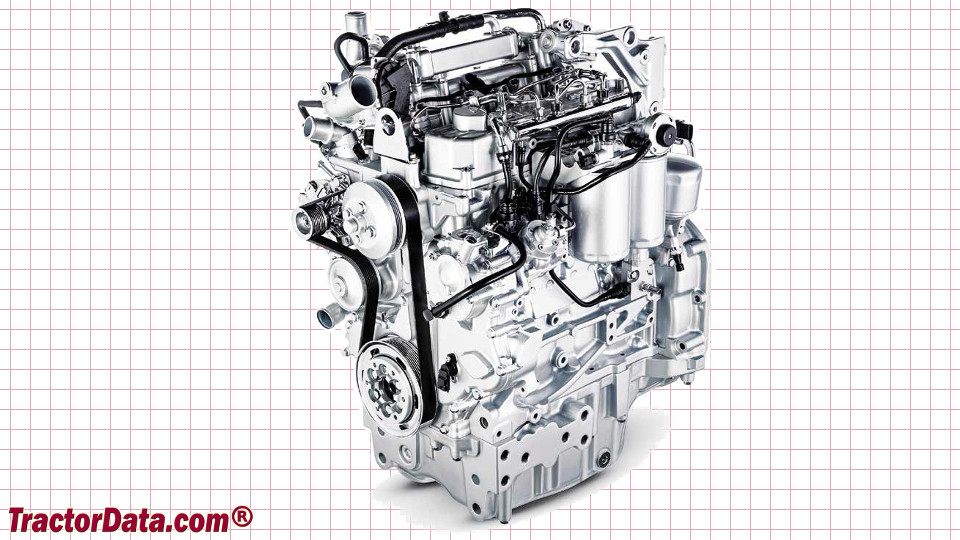

CaseIH Luxxum 100 Engine

CaseIH Luxxum 100 tractor photo
2016 - 2023
Model year
Luxxum Series
Utility tractor
Series:Luxxum 100Luxxum 110
Engine Detail
turbocharged diesel
Displacement:207 ci
3.4 L
Bore/Stroke:3.90x4.33 inches
99 x 110 mm
Emissions:Stage IV
Rated Power (ECE R120):99 hp
73.8 kW
Rated RPM:2200
Torque:317 lb-ft
429.9 Nm
Torque RPM:1500
Starter volts:12
