Deutz-Fahr Agrotron 150

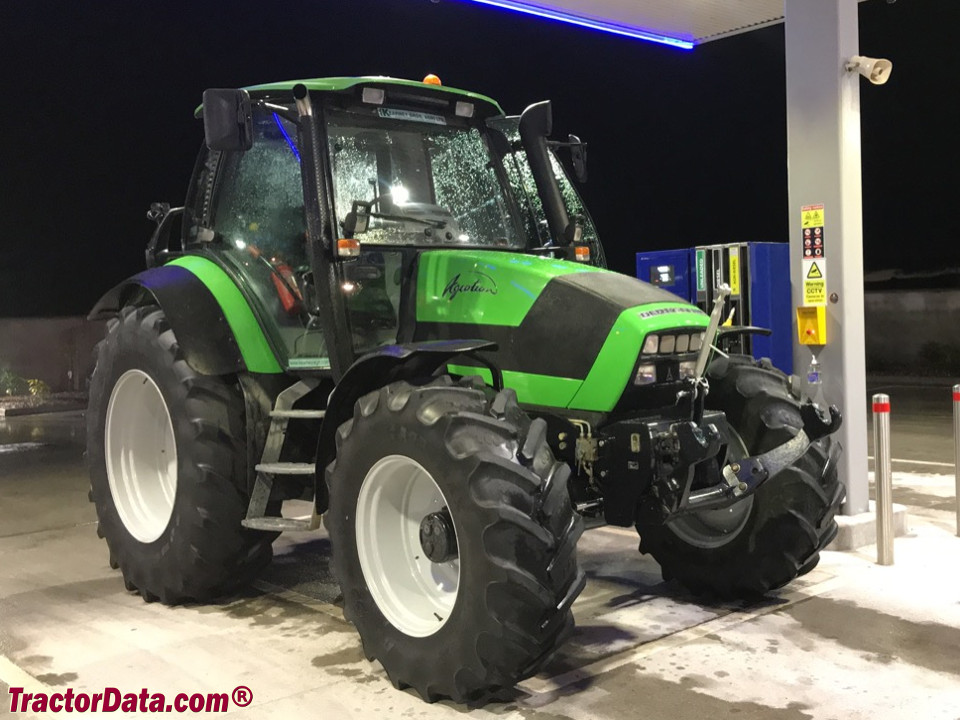

Deutz-Fahr Agrotron 150 tractor photo
2005 - 2007
Agrotron Series
Utility tractor
Series:Agrotron 130Agrotron 150Agrotron 150.7
Production
Manufacturer:Deutz-Fahr
Type:Utility tractor
Deutz-Fahr Agrotron 150 Power
Engine (gross):158.2 hp
118.0 kW
Deutz-Fahr Agrotron 150 Engine
Deutz 6.1L 6-cyl diesel
Fuel tank:71.3 gal
269.9 L
Engine details ...
Mechanical
Chassis:4x4 MFWD 4WD
Steering:power
Brakes:wet disc
Cab:Cab standard with air-conditioning.
Transmissions:24-speed four-speed power shift
 40-speed creeper
Transmission details ...
Hydraulics
Type:open center
 closed center*Optional
Pressure:2901 psi
200.0 bar
Valves:2 to 4
Pump flow:21.9 gpm
82.9 lpm (open)
 31.7 gpm
120.0 lpm (closed)
Tractor hitch
Rear Type:III/II
Rear lift:20283 lbs
9200 kg
Front Hitch:II*Optional
Front lift:8818 lbs
3999 kg
Power Take-off (PTO)
Rear PTO:independent
Clutch:electro-hydraulic wet disc
Rear RPM:540/1000 (1.375)
Engine RPM:540@2200
540E@1600
1000@2200
1000E@1600
Front PTO:independent*Optional
Clutch:1000:2130
Front RPM:1000
Dimensions & Tires
Wheelbase:104.2 inches
264 cm
Weight:12368 lbs
5610 kg
Front tire:16.9R28
Rear tire:20.8R38
Full dimensions and tires ...
Electrical
Charging system:alternator
Charging amps:95
Battery volts:12
Battery AH:143
 170*Optional
