Fendt Farmer 104S
|
|
| Production | |
| Manufacturer | Fendt |
| Row-Crop tractor | |
| Variants | |
| 104LS | deluxe cab |
| Fendt Farmer 104S Engine | |
| MWM 3.1L 3-cyl diesel | |
| Fuel tank | 190.3 gal 720.3 L |
 Engine details ... | |
| Fendt Farmer 104S Transmissions | |
| 13-speed synchronized | |
| 16-speed creeper | |
 Transmission details ... |
| Fendt Farmer 104S Power | |
| Engine | 55 hp 41.0 kW |
| Mechanical | |
| Two- or four-wheel drive | |
| Steering | manual |
| Steering | power OptOptional |
| Four-post ROPS. Cab optional. | |

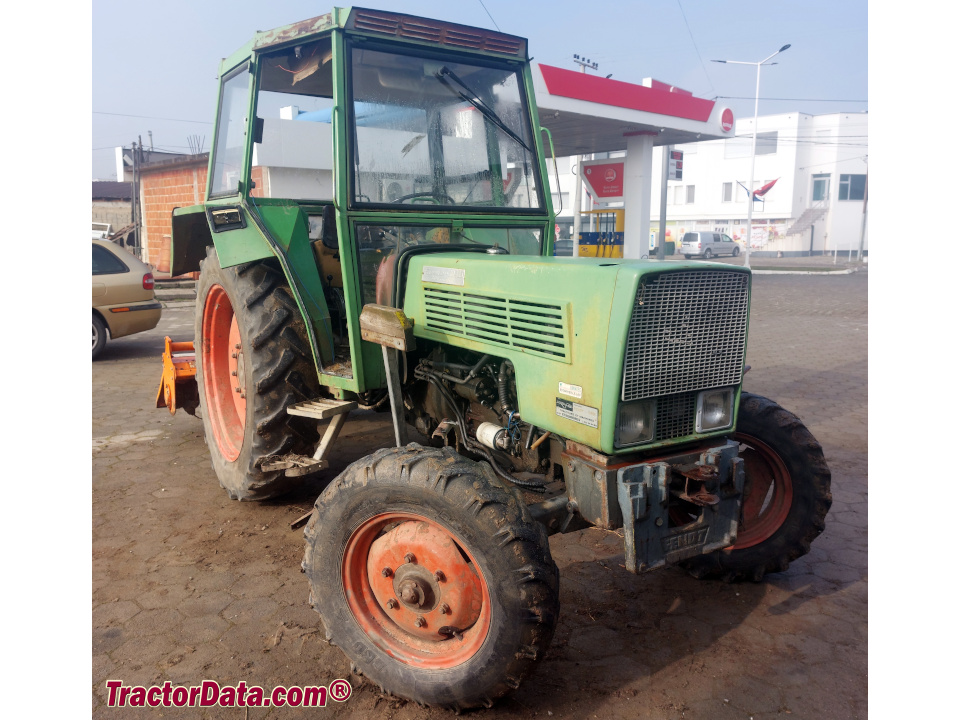

| Photos | |
 | |
 Fendt Farmer 104S photos... | |
| Hydraulics | |
| Type | open center |
| Pressure | 2538 psi 175.0 bar |
| Pump flow | 9.8 gpm 37.1 lpm |
| Tractor hitch | |
| Rear Type | II |
| Control | position and draft control |
| Rear lift | 4541 lbs 2059 kg |
| Power Take-off (PTO) | |
| Rear PTO | independent |
| Rear PTO Type | 540/1000 |
| Dimensions & Tires | |
| 2WD S Wheelbase | 83.4 inches 211 cm |
| 4WD Wheelbase | 83.2 inches 211 cm |
| 2WD LS Wheelbase | 84.4 inches 214 cm |
| Weight | 5710 to 6570 pounds |
| Front tire | 7.50-168 |
| 2WD Rear tire | 16.9/14-30 |
 Full dimensions and tires ... | |
| References | |
 | |
| Farmer Dreizylinder-Turbomatik published in 1978, by Fendt | |
| Farmer Dreizylinder-Turbomatik published in 1979, by Fendt |
