Tractors > Lamborghini > 784

Lamborghini 784 Transmission



Lamborghini 784 tractor photo
1980 - 1985
Utility tractor
Series:754 ← 784
Transmissions overview
12-speed synchronized
16-speed creeper
Transmission
Type:synchronized
Gears:12 forward and 3 reverse
Clutch:279.4mm dry disc
Speeds
With 16.9/14-34 rear tires.

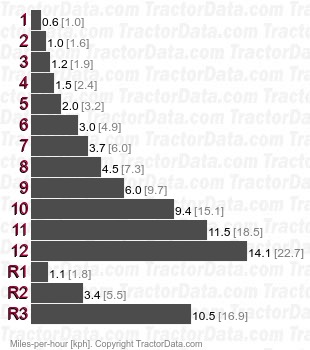

784 synchronized speeds
Transmission
Type:creeper
Gears:16 forward and 4 reverse
Clutch:279.4mm dry disc
Speeds
With 16.9/14-34 rear tires.

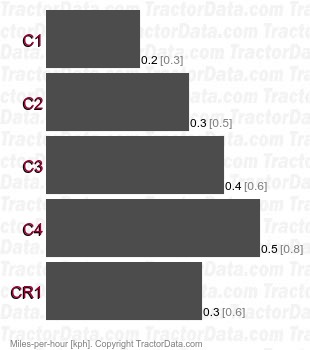

784 creeper speeds
