Tractors > Versatile > 700

Versatile 700 Engine



Versatile 700 tractor photo
1972 - 1977
Model year
2 Series
Four-wheel Drive (4WD) tractor
Series map:
700
750
210.0hp
220.0hp
Engine Detail
Cummins V-555-C210
diesel
8-cylinder
liquid-cooled V8
Displacement555 ci
9.1 L
Bore/Stroke4.625x4.125 inches
117 x 105 mm
Power210 hp
156.6 kW
Air cleanerdual dry element
Pre-heatingether injection
Compression17:1
Rated RPM2850
Idle RPM1000-3135
Torque425 lb-ft
576.3 Nm
Torque RPM1800
Starter volts12
Coolant capacity48 qts
45.4 L
Engine Oil

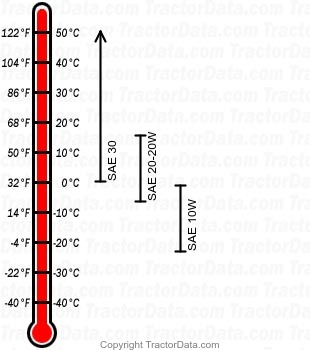

700 diesel engine oil chart
Oil capacity26 qts
24.6 L
