Versatile 750 Engine


No photo available
1976 - 1977
2 Series
Four-wheel Drive (4WD) tractor
Series:700750800
Engine Detail
Cummins N-855-C220
diesel
6-cylinder
liquid-cooled inline
Displacement:855 ci
14.0 L
Bore/Stroke:5.50x6.00 inches
140 x 152 mm
Power:220 hp
164.1 kW
Air cleaner:dual dry element
Pre-heating:ether injection
Compression:15.8:1
Rated RPM:2100
Idle RPM:1000-2300
Torque:644 lb-ft
873.3 Nm
Torque RPM:1500
Starter volts:12
Coolant capacity:49 qts
46.4 L
Engine Oil

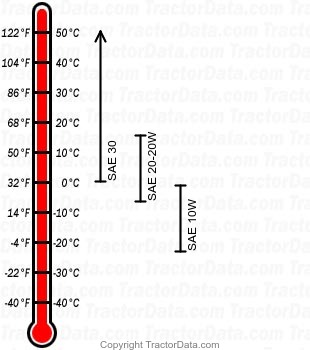

750 diesel engine oil chart
Oil capacity:41 qts
38.8 L
