John Deere 1020 Orchard

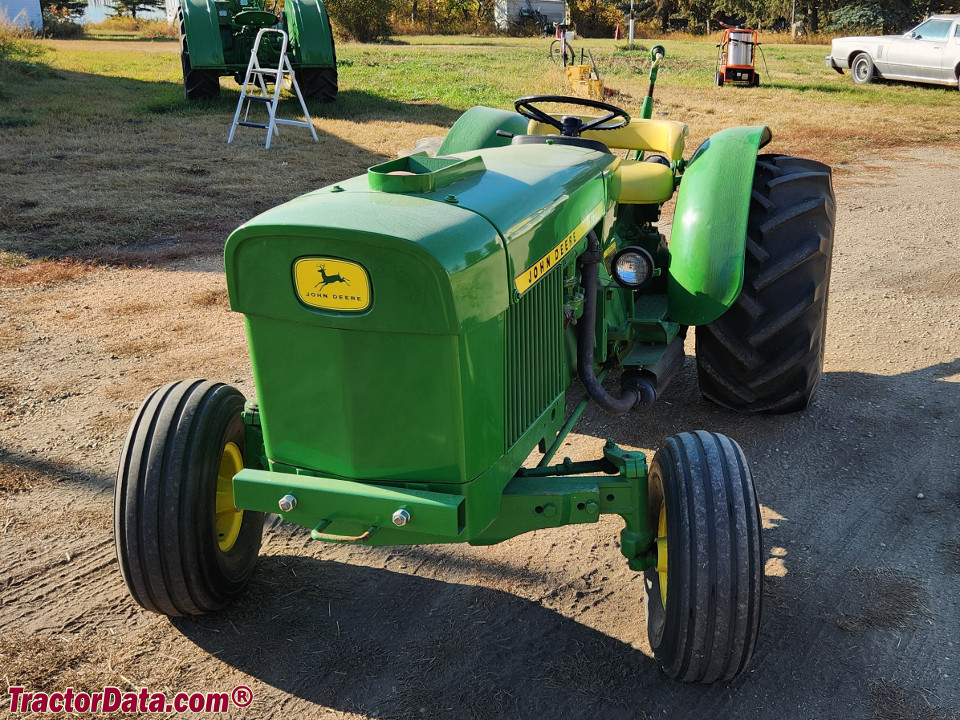

John Deere 1020 Orchard tractor photo
1965 - 1973
New Generation Series
Orchard/Vineyard tractor
ManufacturerJohn Deere
Orchard/Vineyard tractor
Built in Dubuque, Iowa, USA
John Deere 1020 Orchard Engines
John Deere 2.2L 3-cyl gasoline
John Deere 2.5L 3-cyl diesel
Fuel tank16.5 gal
62.5 L
Engine details ...
John Deere 1020 Orchard Power
PTO (claimed)38.8 hp
28.9 kW
Two-wheel drive
Final drivesplanetary
Power steering
Disc brakes
Open operator station.
Typeclosed center
Pump flow13 gpm
49.2 lpm
Power Take-off (PTO)
Rear PTOtransmission
 live OptOptional
Rear RPM540
 540/1000 OptOptional
Dimensions & Tires
Wheelbase75 inches
190 cm
Front tire9.00-10
Rear tire18.4-16A
Full dimensions and tires ...
Battery volts12
1020 Orchard references literature
Tractors 31 to 54 H.P. published in 1969, by John Deere
John Deere Tractors for 68 published in 1968
