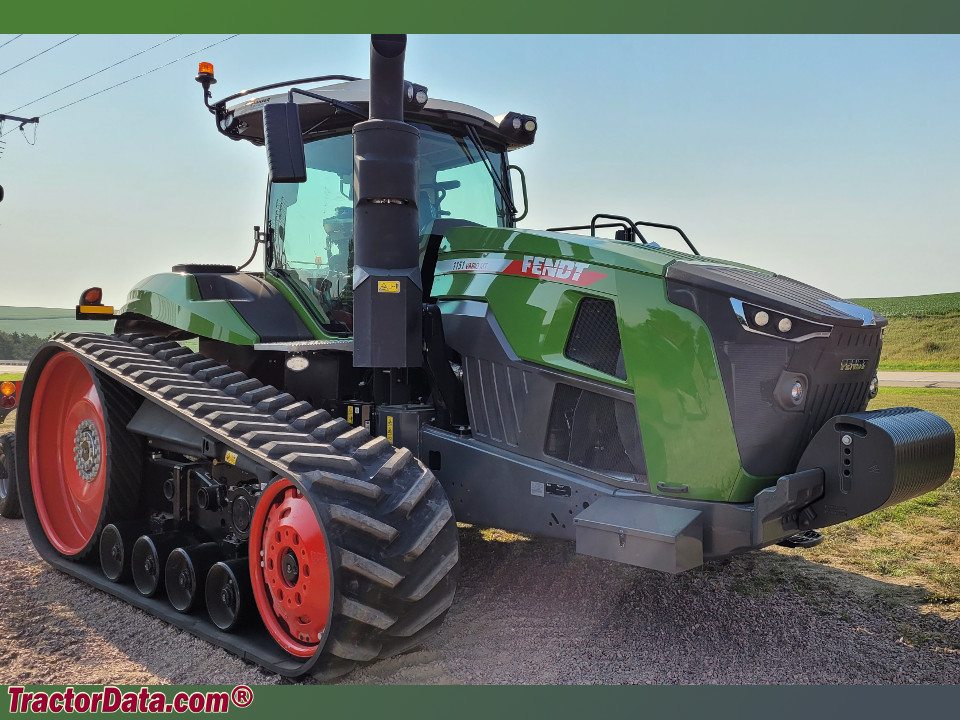

Fendt 1151 Vario MT
|
|
| Series: | 1151 Vario MT | → 1156 Vario MT |
| Production | |
| Manufacturer: | Fendt (a part of AGCO) |
| Type: | Agricultural Crawler tractor |
| Variants | |
| Challenger MT851 |
| Fendt 1151 Vario MT Power | |
| Engine (gross): | 504.2 hp 376.0 kW |
| Fendt 1151 Vario MT Engine | |
| MAN 15.3L 6-cyl diesel | |
| Fuel tank: | 350 gal 1324.8 L |
| Exhaust fluid (DEF): | 35.7 gal 135.1 L |
 Engine details ... | |
| Mechanical | |
| Chassis: | crawler |
| Cab: | Cab standard with air-conditioning. |
| Transmission: | continuously-variable transmission |
 Transmission details ... | |
| Hydraulics | |
| Type: | closed center pressure-flow compensated |
| Pressure: | 2900 psi 200.0 bar |
| Rear valves: | 4 to 8 |
| Pump flow: | 58.1 gpm 219.9 lpm |
| 116.2 gpm 439.8 lpm *Optional | |
| Power Take-off (PTO) | |
| Rear PTO: | independent |
| Rear RPM: | 1000/1000E |
| Dimensions & Tracks | |
| Wheelbase: | 118 inches 299 cm |
| Weight: | 42000 lbs 19051 kg |
| tracks | |
 Full dimensions and tracks ... | |
| Electrical | |
| Ground: | negative |
| Charging system: | alternator |
| Charging amps: | 325 |
| Batteries: | 3 |
| Battery volts: | 12 |
