Tractors > LS > MT347

LS MT347 Engine



LS MT347 tractor photo
2020 -
MT3 Series
Compact Utility tractor
Series map:
MT342
MT347
MT352
42.0hp
47.0hp
52.0hp
Engine Detail
LS Mtron L3C19-T9
turbocharged diesel
3-cylinder
liquid-cooled inline
Displacement114.7 ci
1.9 L
Bore/Stroke3.465x4.055 inches
88 x 103 mm
EmissionsTier IV
Power (gross)47 hp
35.0 kW
Fuel systemcommon rail direct injection
Air cleanerdry
Compression17:1
Rated RPM2600
Idle RPM950-2750
Torque123.2 lb-ft
167.1 Nm
Torque RPM1600
Starterelectric
Starter volts12
Engine Oil

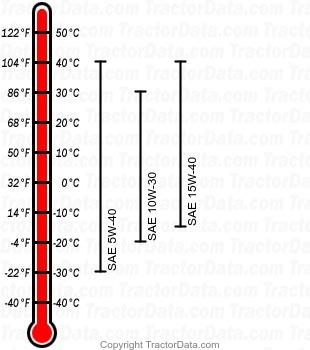

MT347 diesel engine oil chart
Oil capacity6.2 qts
5.9 L
