| | 2019 - |
| 6 Series | | Utility tractor |
|
| Engine Detail |
| Doosan DK03-LEA04 |
| turbocharged diesel |
| 4-cylinder |
| liquid-cooled inline |
| Displacement | 208 ci
3.4 L
|
| Bore/Stroke | 3.86x4.45 inches
98 x 113 mm
|
| Power (gross) | 105 hp
78.3 kW
|
| Fuel system | common rail direct injection
|
| Air cleaner | dry
|
| Rated RPM | 2300
|
| Firing order | 1-3-4-2
|
| Starter | electric
|
| Starter volts | 12
|
| Coolant capacity | 16.9 qts
16.0 L
|

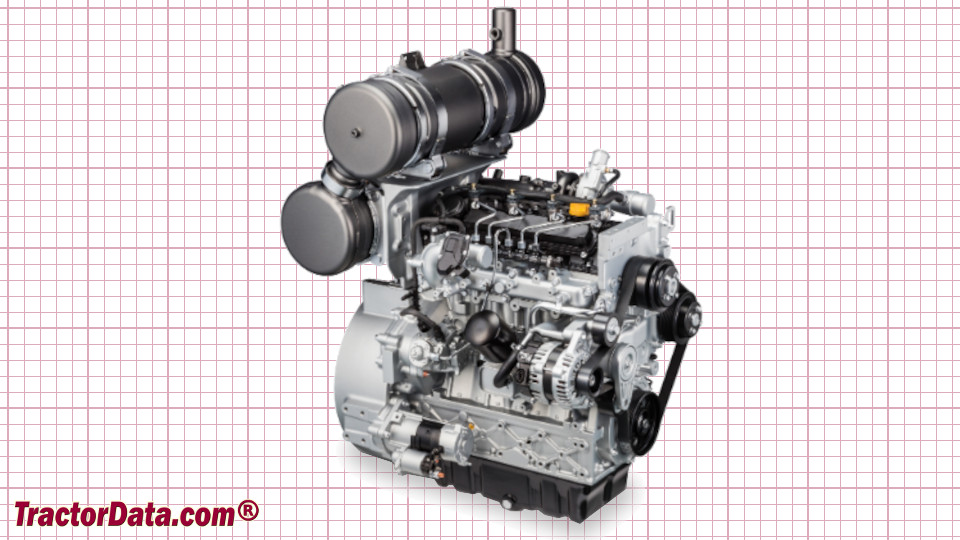

| TYM T1104 Engine |
 |
