TYM T494
|
|
| Production | |
| Manufacturer | TYM |
| Compact Utility tractor | |
| TYM T494 Engine | |
| Kukje 2.3L 4-cyl diesel | |
| Fuel tank | 17 gal 64.3 L |
 Engine details ... | |
| TYM T494 Transmissions | |
| 8-speed shuttle | |
| hydrostatic | |
 Transmission details ... |
| TYM T494 Power | |
| Engine (gross) | 48.3 hp 36.0 kW |
| Mechanical | |
| Power steering | |
| Wet disc brakes | |
| Two-post folding ROPS. Cab optional with air-conditioning. |
| Photos | |
 | |

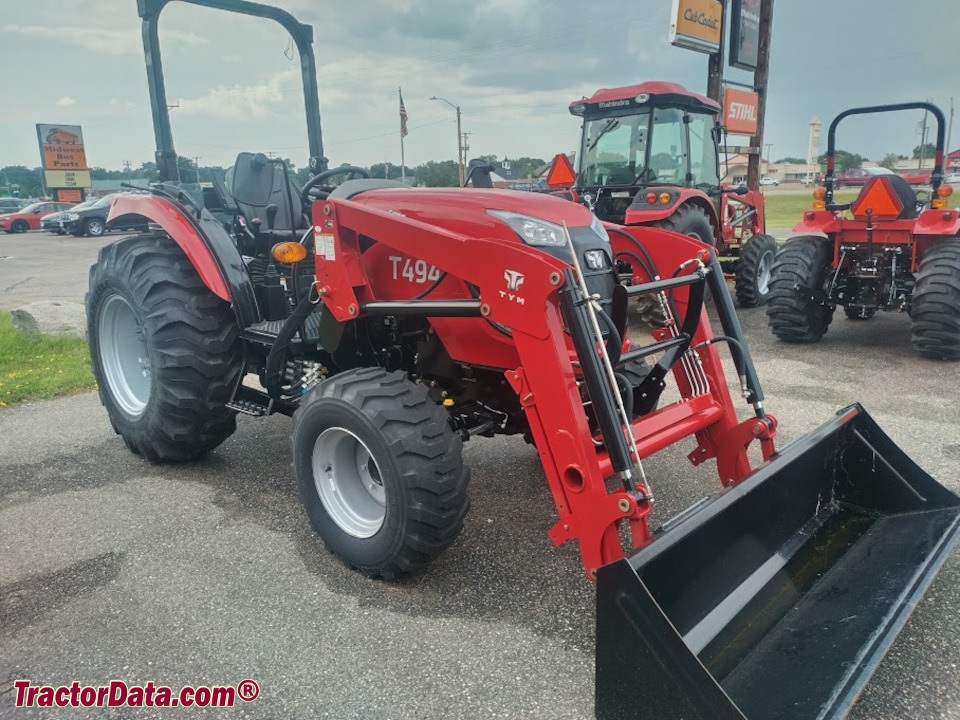

 TYM T494 photos... | |
| Hydraulics | |
| Type | open center |
| Pump flow | 9.5 gpm 36.0 lpm |
| Total flow | 14.5 gpm 54.9 lpm |
| Steering flow | 5 gpm 18.9 lpm |
| Tractor hitch | |
| Rear Type | I |
| Control | position and draft control |
| Rear lift (at ends) | 3918 lbs 1777 kg |
| Rear lift (at 24"/610mm) | 2945 lbs 1335 kg |
| Power Take-off (PTO) | |
| Rear PTO | independent |
| Rear PTO Type | 540 (1.375) |
| Dimensions & Tires | |
| Wheelbase | 76.2 inches 193 cm |
| Weight | 4012 to 4277 pounds |
| Front tire | 9.5-16 |
| Rear tire | 13.6-26 |
 Full dimensions and tires ... | |
| TYM T494 attachments | |
| front-end loader | |
 Attachment details ... |
| Electrical | |
| Ground | negative |
| Charging amps | 70 |
| Battery volts | 12 |
| References | |
 | |
| Operator's Manual for Tractor T494 and T574 HST |
