John Deere 1130

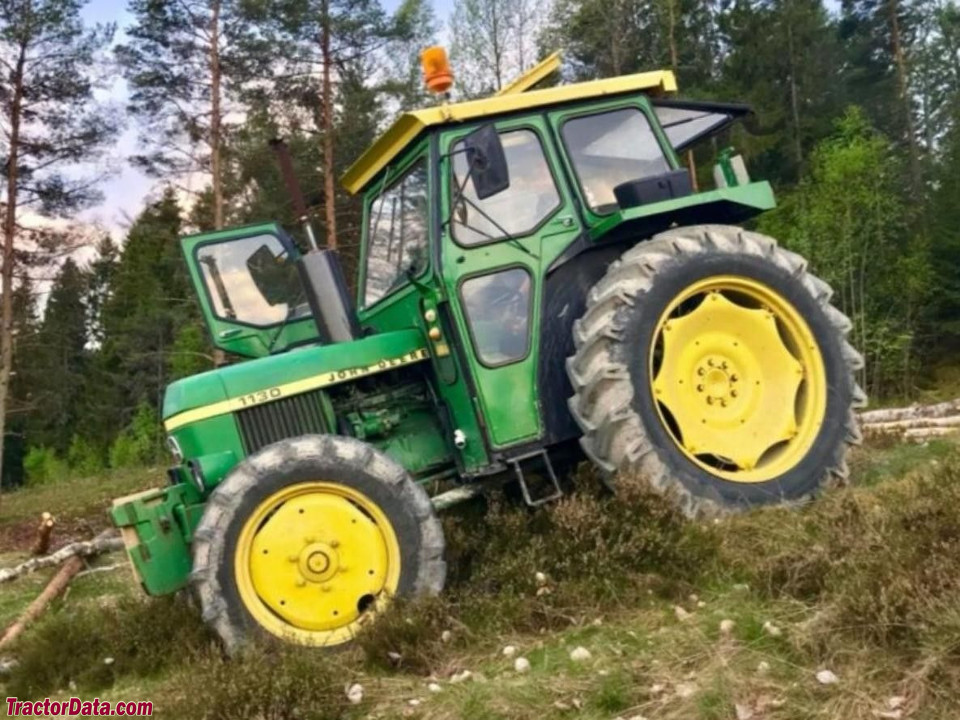

John Deere 1130 tractor photo
1974 - 1979
Utility tractor
Series map:
1030
1130
1630
36.0kw
40.0kw
44.0kw
Production
ManufacturerJohn Deere
Utility tractor
Built in Mannheim, Baden-Württemberg, Germany
John Deere 1130 Engine
John Deere 2.7L 3-cyl diesel
Engine details ...
John Deere 1130 Transmissions
8-speed
16-speed two-speed power shift
Transmission details ...
John Deere 1130 Power
Engine (gross)53.6 hp
40.0 kW
Engine (net)51 hp
38.0 kW
PTO (claimed)42.9 hp
32.0 kW
Mechanical
Two- or four-wheel drive
Final drivesplanetary
Differential lockmechanical rear
Power steering
Hydraulic wet disc brakes
Four-post ROPS. Cab available.
Capacity
Fuel16.4 gal
62.1 L
Hydraulic system9.5 gal
36.0 L
Hydraulics
Typeclosed center
Capacity9.5 gal
36.0 L
Pressure2248 psi
155.0 bar
Pump flow6.6 gpm
25.0 lpm
 12.4 gpmOptOptional
46.9 lpm
Tractor hitch
Rear TypeII/I
Controllower-link draft sensing
Rear lift4022 lbs
1824 kg
Power Take-off (PTO)
Rear PTOindependent
Rear PTO Type540 (1.375)
 540/1000
Engine RPM540@2100
Dimensions & Tires
Wheelbase81 inches
205 cm
Weight4780 lbs
2168 kg
Front tire7.50x16
Rear tire16.9x28
Full dimensions and tires ...
1130 Serial Numbers
Location:Serial number plate on the right side of the 1130 tractor frame, above the front axle.
Electrical
Groundnegative
Charging systemalternator
Charging amps28
Charging volts14
Batteries2
Battery volts12
Battery AH55
References
1130 references literature
Tracteur 1130 published in 1976, by John Deere
Tractors 1130, 2030, 2130, 3130 published in 1976, by John Deere
Product Information Manual published in 1975, by John Deere
Product Information Manual published in 1977, by John Deere
