Fendt Farmer 280V
| | 1987 - 2002 |
| Farmer 200 Series | | Orchard/Vineyard tractor |
|
| Production |
| Manufacturer: | Fendt
|
| Type: | Orchard/Vineyard tractor
|
| Fendt Farmer 280V Power |
| Engine: | 79.1 hp
59.0 kW
|
| Mechanical |
| Chassis: | 4x4 MFWD 4WD
|
| Steering: | power
|
| Brakes: | mechanical drum
|
| Cab: | Two-post mid-mount folding ROPS. Cab available with heat and air-conditioning.
|
| Transmission: | 20-speed
|
 Transmission details ... |
| Hydraulics |
| Pressure: | 2611 psi
180.0 bar
|
| Total flow: | 12.4 gpm
46.9 lpm
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 540/750
|
| | 540/750/1000*Optional
|
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Charging amps: | 55
|
| Charging volts: | 14
|
| Battery volts: | 12
|
| Battery AH: | 88
|
| Page information |
| Last update: | July 23, 2021
|
| Copyright: | Copyright 2021 TractorData LLC
|
| Contact: | Peter@TractorData.com
|
©2000-2021 - TractorData.com®. Notice: Every attempt is made to ensure the data listed
is accurate. However, differences between sources, incomplete listings,
errors, and data entry mistakes do occur.
Consult official
literature from the manufacturer before attempting any service or repair.
Engine details ...

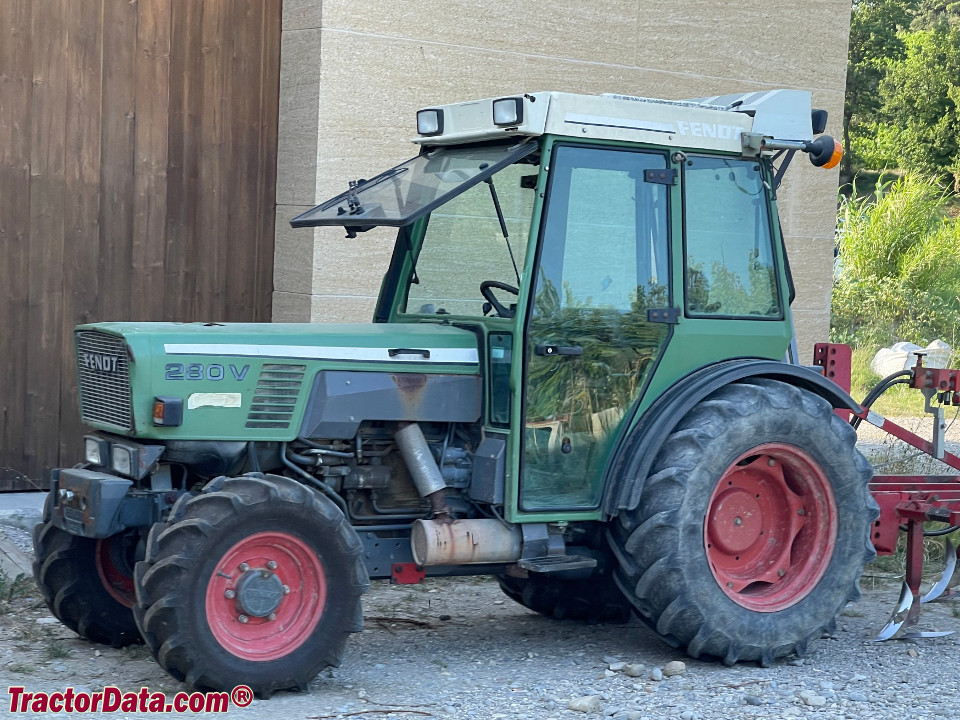

Fendt Farmer 280V photos...
